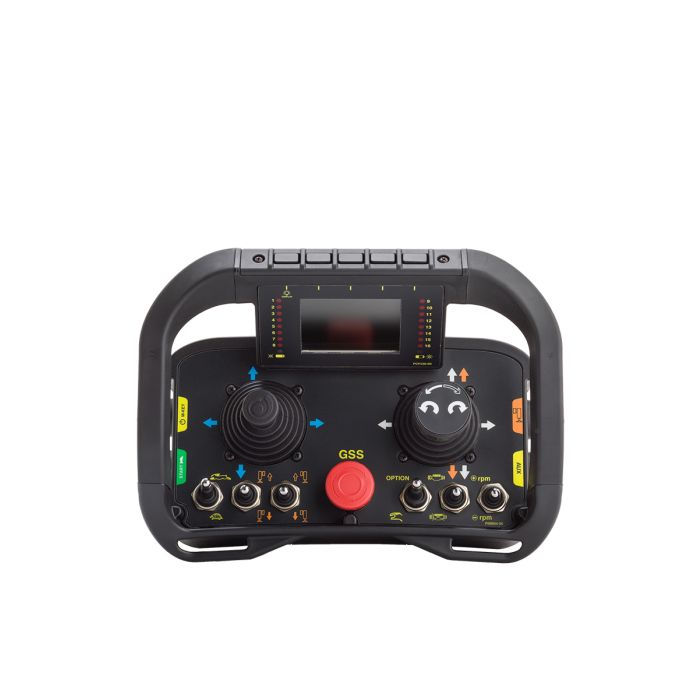

AJN is the compact-size LINK model designed for the AIR series. This version is suitable for a lot of digital applications requiring up to 2 multi-axis joysticks or up to 6 linear joysticks, and up to 8 actuators. AJN is an ergonomic and light-to-carry device for the operator, and it is ideal to control cranes, overhead travelling cranes and small mobile vehicles. A 2.8” TFT LCD colour display shows real-time information about the commands and the machine status. AJN is available with two-way FHSS radio link in the 870 / 915 MHz frequency band. This product is compatible with all AIR receiving units.
Accessories
Shoulder harness
Waist belt
Removable NiMH or Li-Ion battery and battery charger
Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button
| Power supply | 7.4 VDC with LPM02 or MBM06MH battery |
|---|---|
| Frequency band | 870 - 915 MHz FHSS |
| Typical working range | 100 m (330 ft) |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) | with LPM02 battery: |
| - 24 h without display | |
| - 10 h with display 2.8” | |
| with MBM06MH battery: | |
| - 12 h without display | |
| Protection degree | IP65 (NEMA 4) |
| Operating and storage temperature | operating: (-20 °C) ÷ (+55 °C) / (-4 °F) ÷ (+131 °F) |
| storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F) | |
| Safety performance of the GSS/EMS/ATS function | up to PL e, SIL 3 (EN ISO 13849-1/EN IEC 62061) |
| Dimensions | 243 x 169 x 175 mm |
| 9.6 x 6.6 x 6.8 in | |
| Weight | 1,75 kg |
| 3.85 lb |
