CRP

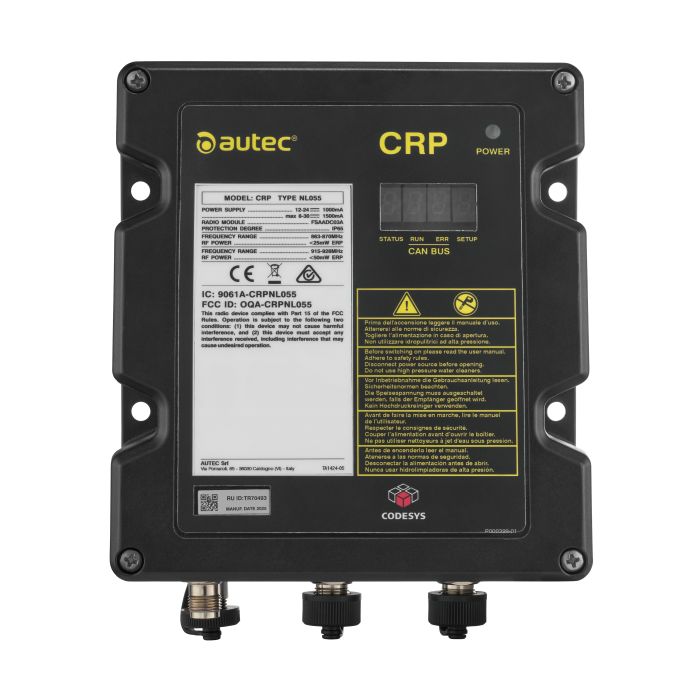

Receiving unit with 8-30 VDC power supply comes in two versions: dualband 870/915 MHz or 2.4 GHz. Customizable connecting interfaces with M12 circular connectors, 10-pin reduced plug or cable gland. With a maximum of 12 analogue and 64 digital outputs (via CANopen interface), 2 STOP outputs, 2 UMFS outputs, 4 programmable MOSFET outputs and 2 CAN outputs. The double CAN output can be used to simultaneously control the CANopen and J1939 protocols. The CRP also has a 4-digit display for diagnostics. The standard antenna is internal whereas the external one with a 1 m or 3 m extension is optional. The base station can also be used in a Take&Release system.

CRP allow the highest flexibility through their CODESYS® development environment, standard for programming according to IEC 61131-3.
