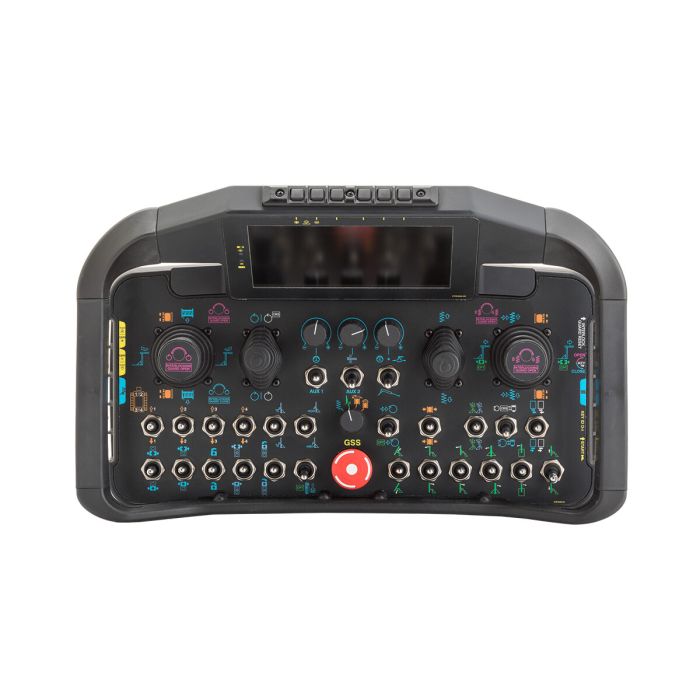

The highly configurable PJB transmitting unit is suitable for heavy duty environments. It has a large number of controls and are sturdy, a characteristic of all AUTEC products. This joystick transmitting unit, which is user friendly thanks to a portable system specially designed to assist the operator, has up to 12 proportional controls and up to 64 digital controls with a data feedback option that shows the information received from the machine on a colour graphic display or panel LED.
| Power supply | 7.4 VDC (Li-Ion Battery) |
|---|---|
| Frequency band | 870/915 MHz and 2.4 GHz FHSS |
| Hamming distance | ≥ 15 |
| Typical working range | 100 m |
| 330 ft | |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) without display | 35 h (Li-Ion Battery) |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) with display | with 4.3"/7" display: 8 h (Li-Ion Battery) |
| Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061) | up to PL e, cat. 4 / SIL 3 |
| Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061) | up to PL d, cat. 3 / SIL 2 |
| Protection degree | IP65 (NEMA 4) |
| Operating and storage temperature | operating: (-25 °C) ÷ (+55 °C) / (-13 °F) ÷ (+130 °F) |
| storage: (-40 °C) ÷ (+85 °C) / (-40 °F) ÷ (+185 °F) | |
| Dimensions | 426 x 243 x 214 mm |
| 16.80 x 9.60 x 8.40 in | |
| Weight | 5.5 kg |
| 12.1 lb |
