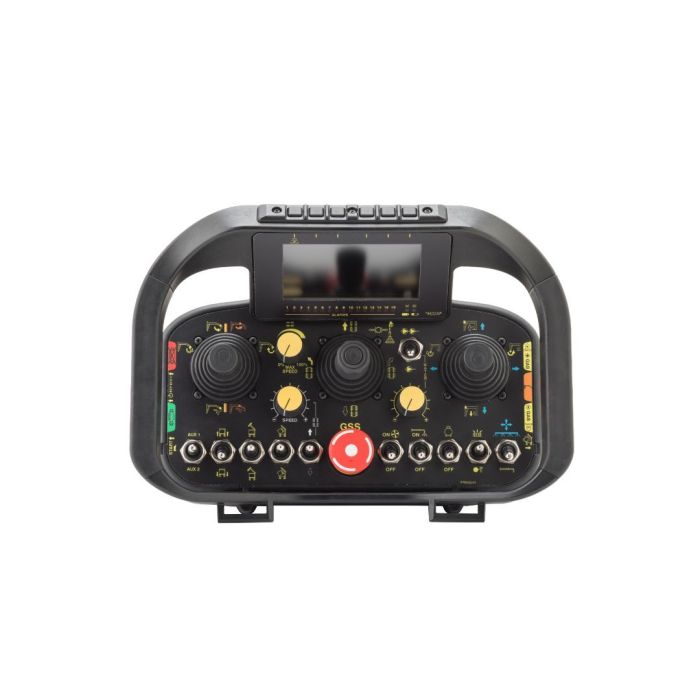

The PJM proportional joystick transmitting unit has up to 12 proportional controls and up to 64 digital controls with a data feedback option that displays the information received from the machine on a graphic display, matrix LED or panel LED.
| Power supply | 7.4 VDC (Li-Ion Battery) |
|---|---|
| 7.2 VDC (NiMH Battery) | |
| Frequency band | 870/915 MHz and 2.4 GHz FHSS |
| Hamming distance | ≥ 15 |
| Typical working range | 100 m |
| 330 ft | |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) without display | 18.5 h (Li-Ion Battery) |
| 11 h (NiMH Battery) | |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) with display | with 2.7" display: 15 h (Li-Ion battery), 9 h (NiMH battery) |
| with 4.3" display: 8 h (Li-Ion battery) | |
| Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061) | up to PL e, cat. 4 / SIL 3 |
| Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061) | up to PL d, cat. 3 / SIL 2 |
| Protection degree | IP65 (NEMA 4) |
| Operating and storage temperature | operating: (-25 °C) ÷ (+55 °C) / (-13 °F) ÷ (+130 °F) |
| storage: (-40 °C) ÷ (+85 °C) / (-40 °F) ÷ (+185 °F) | |
| Dimensions | 310 x 210 x 190 mm |
| 12.20 x 8.30 x 7.50 in | |
| Weight | 2.5 kg |
| 5.5 lb |
