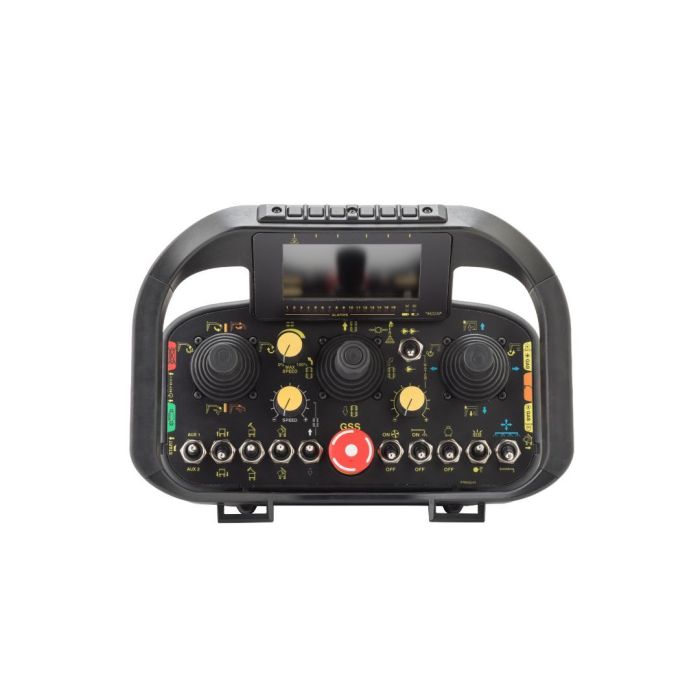

De Autec FJM is een remote control - de grootste uit zijn serie - die naar wens uitvoerbaar is met maximaal 8 joysticks en een aantal extra aandrijvingen. Deze afstandsbesturing biedt ruimte voor een groot aantal opdrachten en functies, en talloze oplossingen op maat. De zender is daarom geschikt voor een breed scala aan machines, met inbegrip van complexe applicaties en speciale machines zoals boren, tunnelingmachines en rails-rijdende voertuigen.
De kunststof behuizing is bestand tegen invloeden van buitenaf en heeft een IP65 beschermingsgraad. De remote control is ontworpen voor comfort en eenvoudige bediening, en is geschikt voor binnen- en buitengebruik.
TÜV certification for the safety functions
STOP function: PL e, cat. 4 (EN ISO 13849-1) / SIL 3 (EN IEC 62061)
UMFS function: PL d, cat. 3 (EN ISO 13849-1) / SIL 2 (EN IEC 62061)
(UMFS= Unintended Movement From Standstill)
Available options voor de Autec FJM
2.7’’ LCD transflective display
4.3’’ color display
Cable Control
Zero G Sensor
IR Sensor
External buzzer
Enable Switch
3-axis Joystick
Potentiometer
Rotative Switch
Removable Key Switch
Selector Lever
“Pull-up” Selector Switch
Side Button
Marine Environment Protection
| Power supply | 7.2 VDC (NiMH Battery) |
|---|---|
| 7.4 VDC (Li-Ion Battery) | |
| Frequency band | 863-870 MHz (128 channels) – 915 MHz (260 channels) |
| 447 MHz (32 channels) – 434 MHz (63 channels) – | |
| 429 MHz (40 channels) | |
| Hamming distance | ≥15 |
| Typical working range | 100 m |
| 330 ft | |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) without display | 18.5 h (Li-Ion Battery) |
| 11 h (NiMH Battery) | |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) with display | with 2.7” Display: 15h (LPM02 Battery), 9h (MBM06MH Battery) |
| with 4.3” Display: 8h (LPM04 Battery) | |
| Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061) | up to PL e, cat. 4 / SIL 3 |
| Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061) | up to PL d, cat. 3 / SIL 2 |
| Protection degree | IP65 (NEMA 4) |
| Operating and storage temperature | operating: (-25 °C) ÷ (+55 °C) / (-13 °F) ÷ (+130 °F) |
| storage: (-40 °C) ÷ (+85 °C) / (-40 °F) ÷ (+185 °F) | |
| Dimensions | 310 x 210 x 190 mm |
| 12.20 x 8.30 x 7.50 in | |
| Weight | 2.5 kg |
| 5.5 lb |
