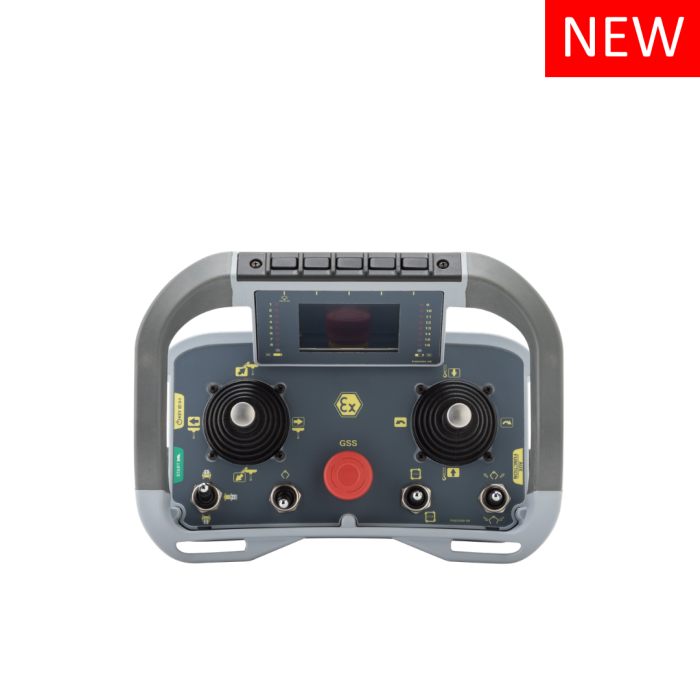

AJN Ex is the most compact model of the Ex series, designed for the safe and reliable control of machines operating in potentially explosive atmospheres. It has been developed for complex industrial applications and combines functional safety, robustness, and ergonomics in a single solution. AJN Ex is suitable for use in ATEX gas and dust areas classified as Zone 1, Zone 21, Zone 2, and Zone 22, as well as for mining applications in category M1, where the remote control must ensure consistent performance even under harsh environmental condition.
| Power supply | 3.7 VDC |
|---|---|
| Radio frequency | 870/915 MHz FHSS |
| Performance level of stop (GSS / EMS) | up to PL d, SIL 2 (EN ISO 13849-1) |
| Performance level of the automatic stop (ATS) | up to PL d, SIL 2 (EN ISO 13849-1) |
| Typical working range | 100 m (330 ft) |
| Max number of functions | up to 2 multi-axis joysticks, up to 10 actuators and 2 side pushbuttons |
| Average usage time with fully charged battery | without display: 20 hours |
| (continuous use at 20°C / 68°F) | with display: 8 hours |
| Protection degree | IP65 (NEMA 4) |
| Operating and storage temperature | operating: (-20 °C) ÷ (+60 °C) / (-4 °F) ÷ (+140 °F) |
| storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F) | |
| Dimensions | 243x163x175 mm (9.57×6.42×6.89 in) |
| Weight | 1,75 kg (3.8 lb) |
| Included accessories | shoulder or waist belt, battery charger, 2 extractable Li-Ion batteries |
