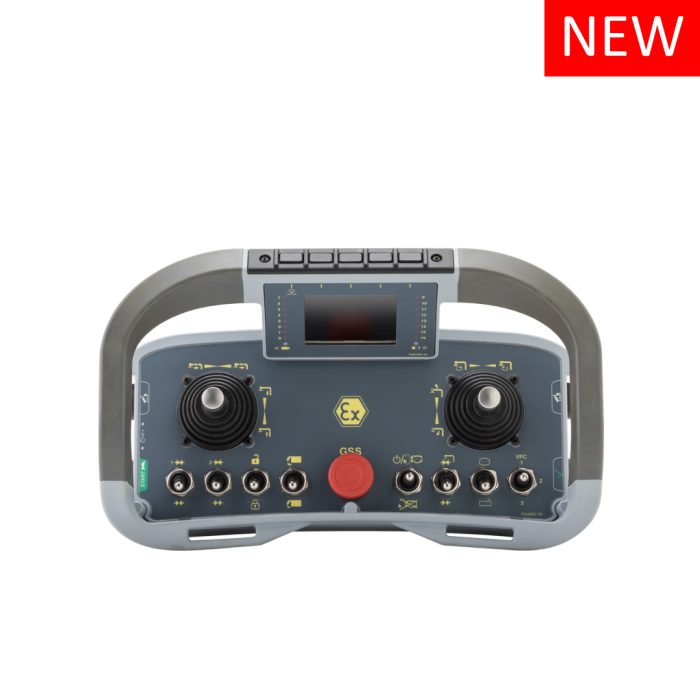

AJQ Ex is the most versatile transmitter unit in a medium-sized format of the Ex series. It is designed for safe and reliable control of machines operating in potentially explosive atmospheres. Developed for complex industrial applications, it combines functional safety, robustness, and ergonomics in a single solution. AJQ Ex is suitable for use in ATEX gas and dust areas classified as Zone 1, Zone 21, Zone 2, and Zone 22, as well as for mining applications in category M1, where the remote control must ensure consistent performance even under harsh environmental conditions.
| Power supply | 3.7 VDC |
|---|---|
| Radio frequency | 870/915 MHz FHSS |
| Performance level of stop (GSS / EMS) | up to PL d, SIL 2 (EN ISO 13849-1) |
| Performance level of the automatic stop (ATS) | up to PL d, SIL 2 (EN ISO 13849-1) |
| Typical working range | 100 m (330 ft) |
| Max number of functions | up to 3 multi-axis joysticks, 8 actuators and 4 side buttons; |
| up to 6 single-axis joysticks, 10 actuators and 4 side buttons | |
| Average usage time with fully charged battery | without display: 20 hours |
| (continuous use at 20°C / 68°F) | with display: 8 hours |
| Protection degree | IP65 (NEMA 4) |
| Operating and storage temperature | operating: (-20 °C) ÷ (+60 °C) / (-4 °F) ÷ (+140 °F) |
| storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F) | |
| Dimensions | 310×159×173 mm (12.2×6.3×6.8 in) |
| Weight | ~2,8 kg (~ 6.2 lb) |
| Included accessories | shoulder or waist belt, battery charger, 2 extractable Li-Ion batteries |
