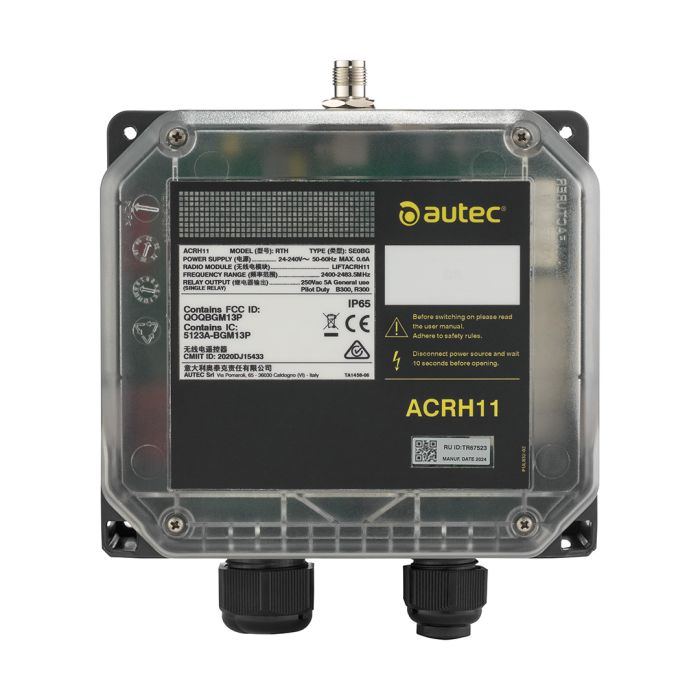

The highly compact base station operates with a wide range of input voltages, and has 11 onboard power relays, and provision for one expansion board that can provide additional outputs or other features. The semi-transparent cover allows to see the high-intensity flashing lamp inside which operates when the cableless control system is in use.
| Performance of the General Safe Stop function (GSS) | SIL 2 / PL d; cat. 3 |
|---|---|
| Power supply | 24 – 240 VAC (50-60 Hz) |
| Antenna | internal |
| external optional | |
| Max number of Optional Boards | 1 |
| Max number of outputs | 11 |
| Commands rated current | 5 A (250 VAC) |
| Rated current of STOP / Safety outputs | 5 A (250 VAC) |
| Protection degree | IP65 (Enclosure type 4) |
| Operating and storage temperature | operating: (-20 °C) ÷ (+70 °C) / (-4 °F) ÷ (+158 °F) |
| storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F) | |
| Connecting interfaces | cable gland M20 and M25 |
| plug 16 and 24 pin | |
| Dimensions | 150x134.5x60 mm (5.9x5.29x2.36 in) |
| Weight | 1 kg (2.2 lb) |
