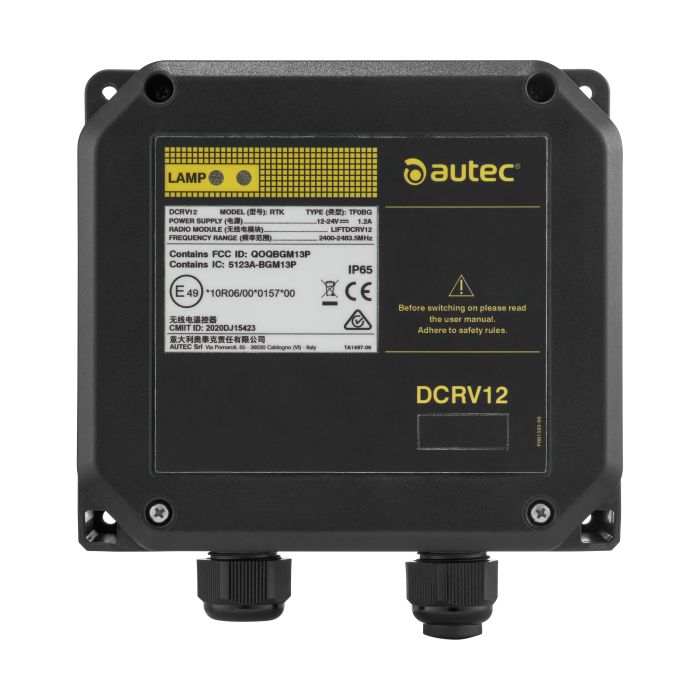

The highly compact base station has 12-24 VDC inputs, 12 outputs (4 relays, 8 MOSFET), and an available expansion board that can provide additional outputs or other features.
| Performance of the General Safe Stop function (GSS) | SIL 2 / PL d; cat. 3 |
|---|---|
| Power supply | 12-24 VDC |
| Antenna | internal |
| external optional | |
| Max number of Optional Boards | 1 |
| Max number of outputs | 12 |
| Commands rated current | 5 A (30 VDC) |
| Rated current of STOP / Safety outputs | 5 A (30 VDC) |
| Protection degree | IP65 (Enclosure type 4) |
| Operating and storage temperature | operating: (-20 °C) ÷ (+70 °C) / (-4 °F) ÷ (+158 °F) |
| storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F) | |
| Connecting interfaces | cable gland |
| plug 16 and 24 pin | |
| Dimensions | 150x134.5x60 mm (5.9x5.29x2.36 in) |
| Weight | 1 kg (2.2 lb) |
