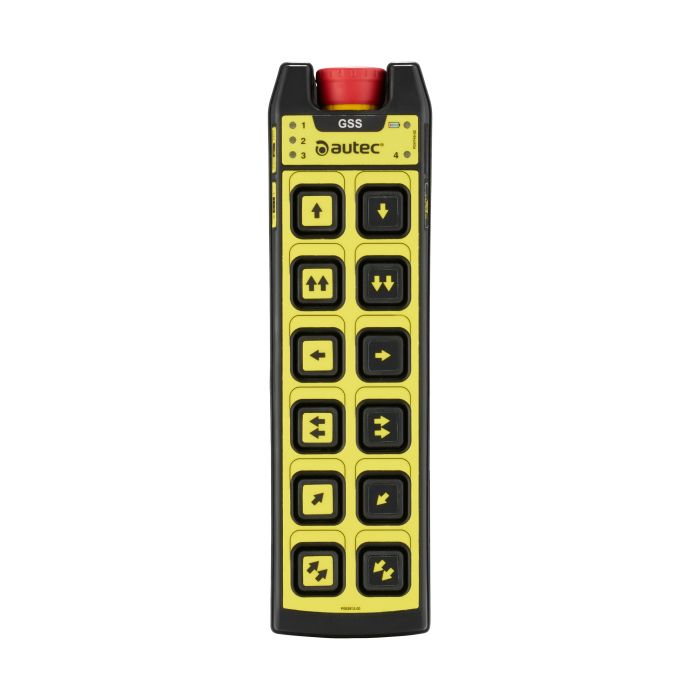

The LIFT T12 Pushbutton is a light and sturdy handheld transmitter with 10 dual-pression buttons that introduces 3 side buttons for further customizable options. The increased number of buttons allows a clear programming setup and further reduce accidental activation errors.
All models have 4 x LEDs (Data Feedback) which can display machine information.
Main applications:
Overhead Cranes
Gantry, luffing, and flag cranes
Exceptional transport and roll-off trucks
| Power supply | Li-Ion battery LPM00 (T12B) |
|---|---|
| n° 3 alkaline batteries AAA 1.5 V (T12C | |
| Frequency band | 2400 – 2483.5 MHz (40 channels) |
| GSS/EMS/ATS performance | up to PL d, SIL 2 |
| (EN ISO 13849-1 and EN IEC 62745:2017 | |
| Typical working range | 75 m (246 ft) |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) | 38 h (T12B) |
| 70 h with batteries 1.2 Ah (T12C) | |
| 88 h with batteries 1.5 Ah (T12C) | |
| Antenna | internal |
| Protection degree | IP65 (Enclosure type 4) |
| Operating and storage temperature | operating: (-20 °C) ÷ (+60 °C) / (-4 °F) ÷ (+140 °F) |
| storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F) | |
| Dimensions | 66.6x230.8x37.4 mm (2.62x9.08x1.47 in) |
| Weight | ~0.35 kg (~ 0.77 lb) |
