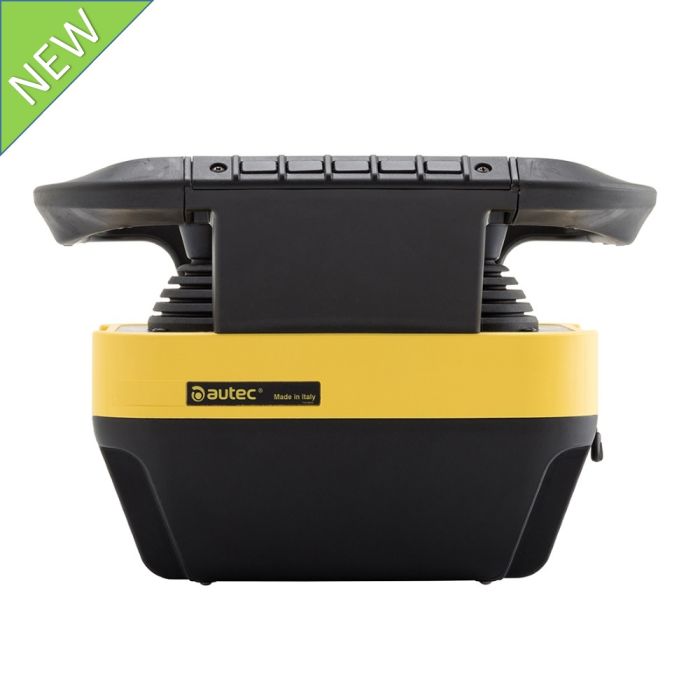

26x14x17 cm COMPACT FJC transmitting unit
The COMPACT FJC is a powerful and configurable joystick transmitting unit in the Autec Dynamic series. It can be used for the remote control of hydraulic machines and countless other mobile applications. Apart from its compact design (only 260 x 138 x 166 mm, wxhxd) and ease to wear, an important characteristic is the COMPACT AJC’s maximized surface space on the top and sides. This gives optimal ergonomic comfort and configuration flexibility.
The operator’s hands rest on a high-strength rubber-coated rollbar improves comfort and grip. A data feedback function gives the user important information on machine status. This information can be read on the device’s customizable 2.8’’ color TFT LCD graphic display or via 32 LEDs. The side buttons are flush with the surface and have a large activation area, resulting in a well-protected remote control and comfortable use for the operator. The STOP button can be conveniently located either on the top of the unit or on the side at the bottom. Customers are also given the opportunity to customize the adhesive panel with their own logo.
The Autec COMPACT AJC is available with FSA technology with bi-directional FHSS radio (870/915 MHz) or the 2.4 GHz frequency band. It is available also for the “P” line of DYNAMIC (COMPACT FJP), which allows the pairing with a new CAN receiver (CRP), through a simple procedure by cable (d.d. May 2019).
Accessories COMPACT AJC
- Shoulder strap or waist belt
- Extractable NiMH or Li-Ion battery and charger
- Cable Control
- Zero-G Sensor
- Aluminum Panel (for more difficult working environments)
- IR Sensor
- External Buzzer
- 2.8’’ TFT LCD graphic display (240×320 pixel, 65536 colors) or 32 LEDs
- Extractable mechanical key (if Key ID 0-1 is not present)
- Rotative switch
- Selector lever
- “Pull-up” selector switch
- Side button
|Power supply||7,4 Vdc (Li-ion)- 7,2 Vdc (NiMH)|
|Frequency band||870/915 MHz FHSS
|Typical working range||up to100 m|
|Average usage time with fully charged battery (continuous use at 20°C)||18.5 h (LPM02 Battery), 11 h (MBM06MH Battery)|
|Average usage time with fully charged battery (continuous use at 20°C) with display||with 2.8” Display: 15 h (LPM02 Battery)|
|Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061)||up to PL e, SIL 3|
|Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061)||up to PL d, cat. 3 / SIL 2|
|Protection degree||IP 65 (NEMA 4)|
|Operating and storage temperature||operating: (-25°C )÷ (+55°C)
storage: (-40°C) ÷ (+85°C)
