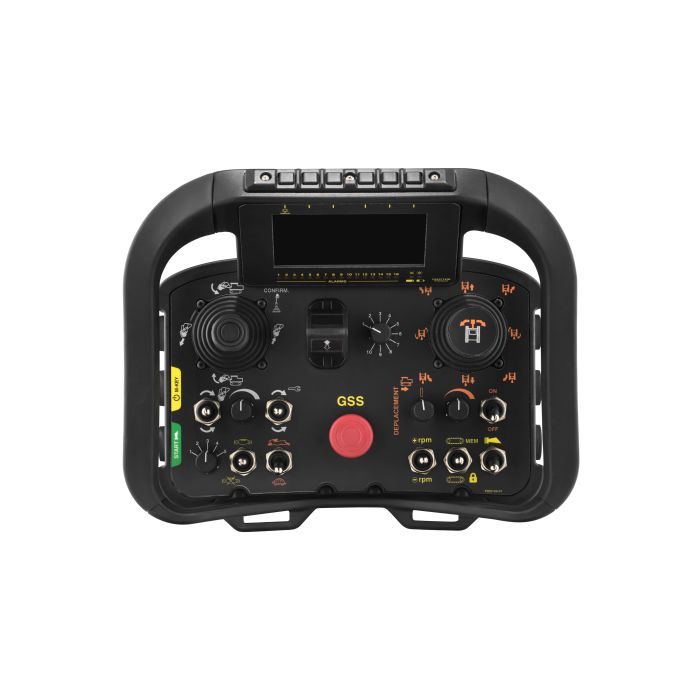

R-PRO is the AUTEC size regular portable station made to command a lot kind of machines, especially in the construction sites. It is equipped with multiple actuators, joysticks, and side buttons, specifically designed to offer the best performance with this product. Two frames are available: one accommodates the data-feedback system (with display or LED array) while the second does not. This provides ergonomic benefits for the operator, by reducing size and weight.
Accessories
Waist belt
Shoulder strap
Extractable Li-Ion or NiMH battery and charger
Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button
| Power supply | 7.4 VDC with LPM02, LPM04 or MBM06MH battery |
|---|---|
| Frequency band | 870 - 915 MHz, FHSS |
| Typical working range | 100 m (330 ft) |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) | with LPM02 battery: |
| - 24 h without display | |
| with LPM04 battery: | |
| - 10 h with display 4.3” | |
| with MBM06MH battery: | |
| - 12 h without display | |
| Protection degree | IP65, NEMA 4 |
| Operating and storage temperature | -20 °C ÷ +55 °C (-4 °F ÷ +130 °F) |
| -40 °C ÷ +70 °C (-40 °F ÷ +158 °F) | |
| Safety performance of the GSS/EMS/ATS function | up to PL e, SIL 3 (EN ISO 13849-1/EN IEC 62061) |
| Operating and storage temperature | operating: (-20°C )÷ (+55°C) / (-4°F) ÷ (+130°F) |
| storage: (-40°C) ÷ (+70°C) / (-40°F) ÷ (+158°F) | |
| Dimensions | 289x231x199 mm (11.4x9.1x7.8 in) - with display |
| 289x193x199 (11.4x7.6x7.8 in) - without display | |
| Weight | 3,2 kg (7.1 lb) |
