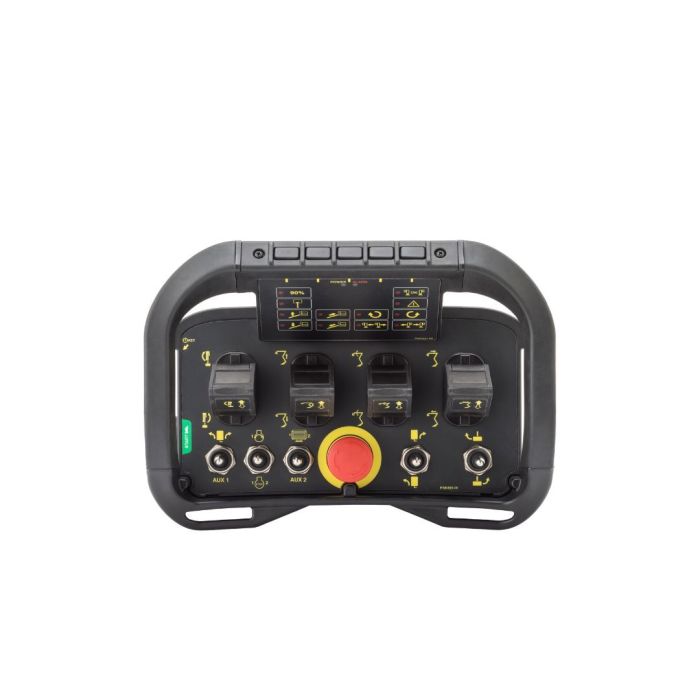

WC-N+

WC-N+ is a cable control unit with 4 to 6 configurable linear joysticks. The main features of this product are its ergonomic design and reliability which provide many benefits for users. The data feedback option provides real-time machine status visualizations, and it is also available on a 2.8" TFT LCD color display. Up to 8 digital outputs, up to 8 proportional PWM outputs (4 axes, bi-directional), and up to 2 proportional voltage outputs are available. It features a serial port for field bus (CANopen), 4 digital inputs, and a removable power keyswitch.

Accessories
Shoulder harness
Waist belt

STOP and EMERGENCY STOP
Each cable control unit has a red stop button (STOP). With an appropriate cable connection, a stop button (rated current up to 2 A, 30 VDC) can be combined with machine safety circuits to be used as an emergency stop button (EMERGENCY STOP). A “stop device” is defined as a manually commanded device that stops the machine in safe conditions, while an “emergency stop device” imposes an emergency stop, halting dangerous operations of a machine in an emergency. When a button fulfills an emergency stop function as well it is colored red with a yellow background. The choice of how this button is configured is based on the application requirements and a risk assessment of the machine.
