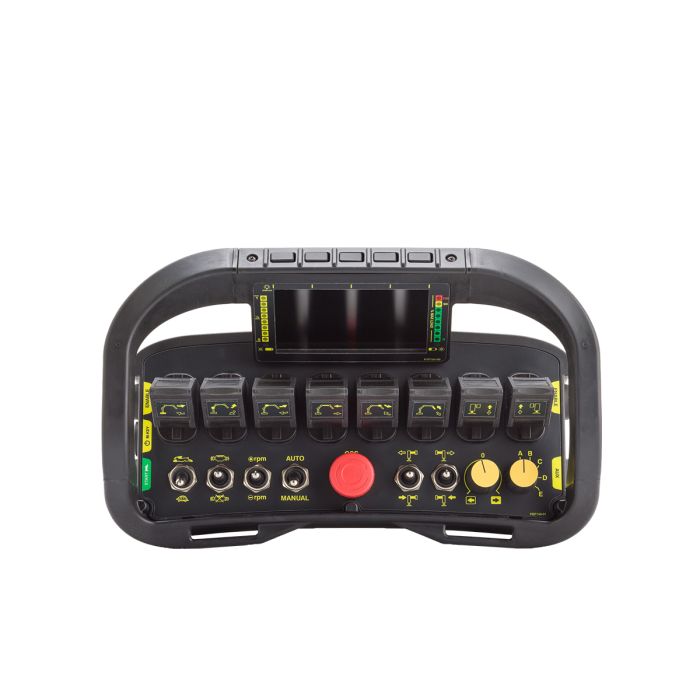

CURVE is a joystick transmitting unit that can house 8 linear joysticks and up to 3 multiaxis joysticks. It is ideal for controlling medium/large sized hydraulic cranes but can also be used on concrete pumps and for many other applications. A data feedback function gives the user important information on machine status on a customizable 2.8" TFT LCD colour graphic display or via 32 LEDs or also on a 4.3" colour display (CODESYS/Linux programmable). CURVE is available with FSA technology with bi-directional FHSS radio on a 870/915 MHz or 2.4 GHz frequency band.
Accessories
Shoulder harness or waist belt
Extractable NiMH or Li-Ion battery and charger
Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button
| Power supply | 7.2 VDC (NiMH Battery) |
|---|---|
| 7.4 VDC (Li-Ion Battery) | |
| Frequency band | 870/915 MHz FHSS |
| 2.4 GHz | |
| Hamming distance | ≥15 |
| Typical working range | 100 m |
| 330 ft | |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) without display | 18.5 h (Li-Ion Battery) |
| 11 h (NiMH Battery) | |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) with display | with 2.8” Display: 9 h (Li-Ion Battery) |
| Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061) | up to PL e, SIL 3 |
| Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061) | up to PL d, cat. 3 / SIL 2 |
| Protection degree | IP65 (NEMA 4) |
| Operating and storage temperature | operating: (-25 °C) ÷ (+55 °C) / (-13 °F) ÷ (+130 °F) |
| storage: (-40 °C) ÷ (+85 °C) / (-40 °F) ÷ (+185 °F) | |
| Dimensions | 309 x 170 x 182 mm |
| 12.20 x 6.70 x 7.20 in | |
| Weight | 2.4 kg |
| 5.3 lb |
