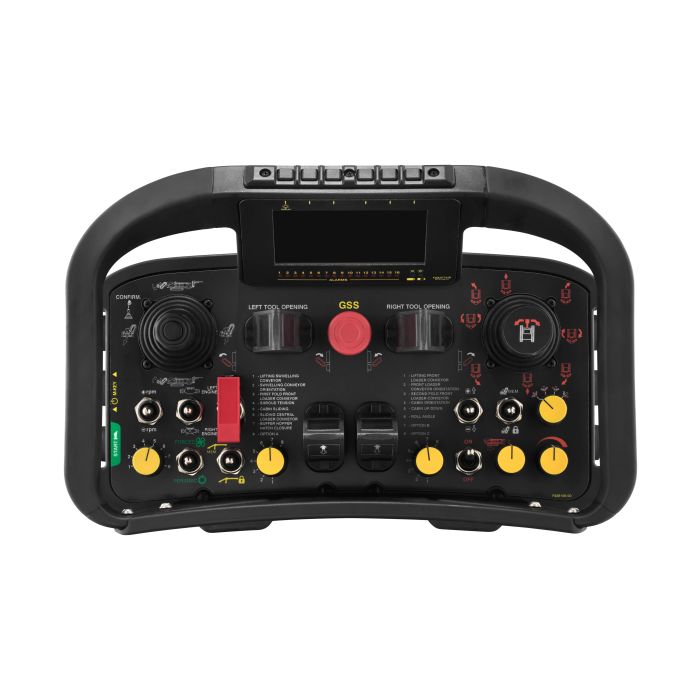

M-PRO is the AUTEC portable station equipped with a high number of actuators, high control reliability, modern and ergonomic design, and a remarkable battery autonomy. Its frame is optimized to house the 4.3" color display or the new 4.1" monochrome display; 4 to 32 signal LEDs are available as an option. Powered by external Li-Ion battery. M-PRO operates with FHSS (Frequency Hopping Spread Spectrum) dual band radio connection with automatic free channel search.
Accessories
Waist belt
Shoulder strap
Removable Li-Ion battery and battery charger
Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button
| Power supply | 7.4 VDC with LPM02 or LPM04 battery |
|---|---|
| Frequency band | 870 - 915 MHz, 2.4 GHz, FHSS |
| Typical working range | 100 m |
| 330 ft | |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) | with LPM02 battery: |
| - 18,5 h without display | |
| - 15 h with display 4.1” | |
| with LPM04 battery: | |
| - 35 h without display | |
| - 28 h with display 4.1” | |
| - 8 h with display 4.3” | |
| - 8 h with 32 LEDs | |
| Protection degree | IP65, NEMA 4 |
| Operating and storage temperature | -25 °C ÷ +55 °C (-13 °F ÷ +130 °F) |
| -40 °C ÷ +85 °C (-40 °F ÷ +185 °F) | |
| Safety performance of the GSS/EMS/ATS function | up to PL e, SIL 3 (EN ISO 13849-1/EN IEC 62061) |
| UMFS function | up to PL d, cat. 3 / SIL 2 (EN ISO 13849-1/EN IEC 62061) |
| Dimensions | 363x233x198 mm (14.3x9.2x7.8 in) |
| Weight | 4 kg (8.82 lb) |
