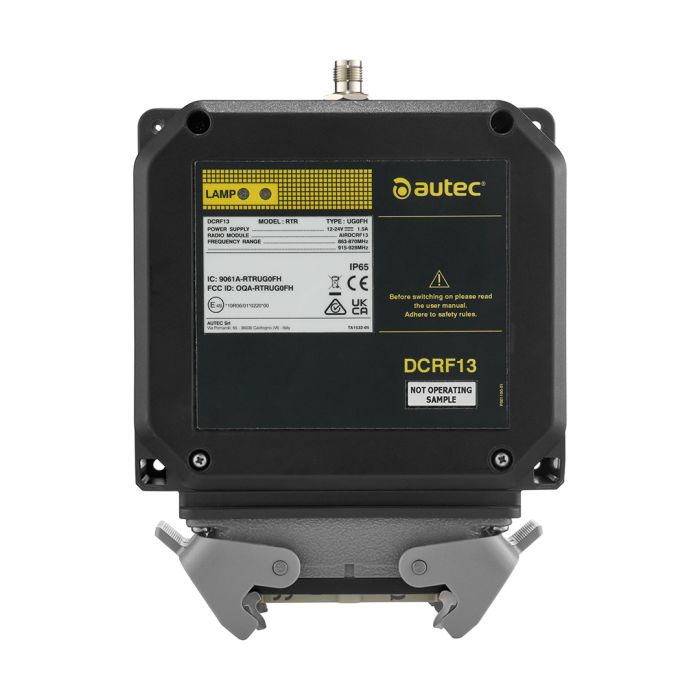

DCRF13 is a compact base station in AUTEC’s AIR series designed for forestry and mobile applications. It complies with standard UNI EN 17067:2019 radio remote control safety regulations for forestry machinery.
| Power supply | 12-24 Vdc (1.5 A) |
|---|---|
| Frequency band | 870 MHz and 915 MHz FHSS |
| Antenna | dedicated external, dipole-type with RP-TNC connector |
| Max number of Optional Boards | 1 |
| Max number of outputs | up to 13 |
| Commands rated current | 5 A (30 Vdc) relays |
| 4 A (30 Vdc) solid state (MOSFET) | |
| Rated current of STOP / Safety outputs | 6 A (30 Vdc) |
| Safety performance of the STOP function (EN ISO 13849-1) | up to PL e (UNI EN ISO 13849-1:2016) |
| Protection degree | IP65, NEMA 4 |
| Operating and storage temperature | operating: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F) |
| storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F) | |
| Connecting interfaces | M20/M25 cable glands or 16/24 poles plug |
| Dimensions | 150x165.5x60 mm (5.9x6.5x2.4 in) with two M20 cable glands |
| Weight | 1 kg (2.2 lb) |
