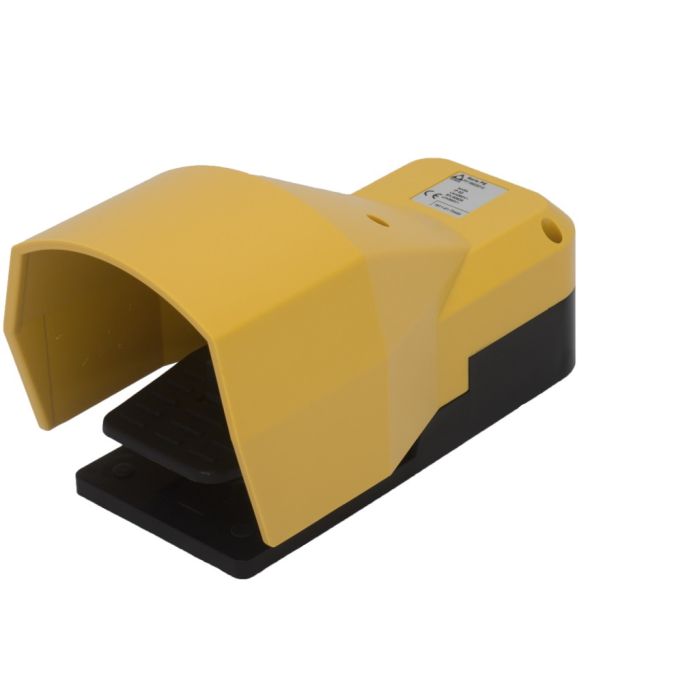

Footswitch for auxiliary control of industrial machines. It acts on the machine’s motor through a power interface, like a contactor.
Features - The emergency stop mushroom pushbutton complies with standard EN 418. - Positive opening NC contacts for safety functions. - Mechanical life of switches: 1 million operations. - IP protection degree: footswitch 6200 is classified IP53. - Extreme temperature resistance: -25°C to +70°C. - Made of plastic material. - Materials and components are shock and wear resistant.
Options - Single or double footswitches fixed on a metal plate, with emergency mushroom pushbutton. - It may be fitted with “lock-release” device used for keeping the pedal pressed or with safety device to prevent accidental operation. - Snap or slow action switches with 1NO+1NC contacts, or slow action switches with 2NO+2NC contacts.
Certifications - CE marking
Conformity to Standards | EN 60204-1 EN 60947-1 EN 60947-5-1 EN 60529 |
---|---|
Storage ambient temperature | -40°C/+70°C |
Operational ambient temperature | -25°C/+70°C |
Protection degree | IP 53 |
Insulation category | Class I |
Cable entry | cable clamp M20 |
Markings and homologations | CE |
