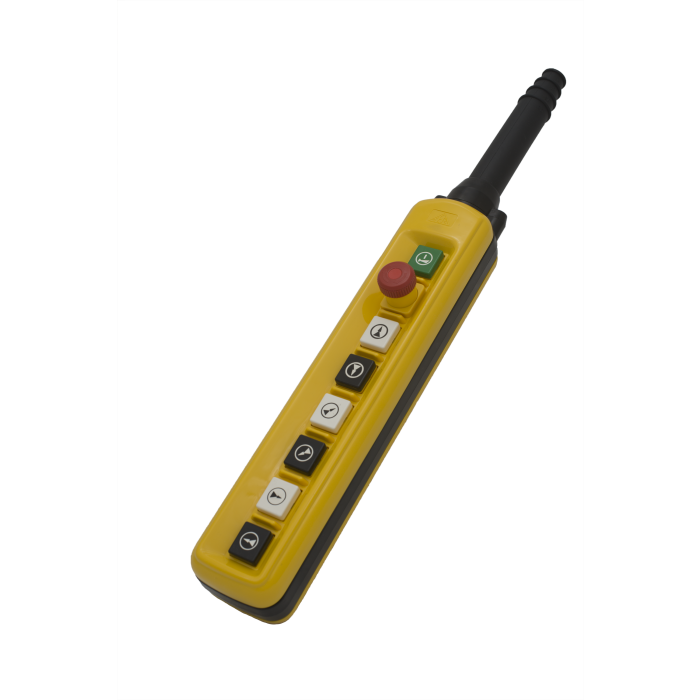

Pendant station for auxiliary control of industrial machines. Sturdy and handy, NPA is a classic control station, available with plastic pushbuttons or with dust-tight rubber pushbuttons, with up to 3 speed switches.
Features - The cable sleeve can be angled up to 20° to give the operator the best view of all the control elements and enable a natural, comfortable working position. - Rectangular pushbuttons in thermoplastic material or rubber pushbuttons with symbol disks to ensure protection against dust. - Two-colour moulded pushbuttons and disks to guarantee clear reading and wear resistance. - The emergency stop mushroom pushbutton complies with standard EN 418. - Positive opening NC contacts for safety functions. - Mechanical life of switches: 1 million operations. - IP protection degree: NPA is classified IP65. - Extreme temperature resistance: -25°C to +70°C. - All materials and components used are wear resistant and guarantee protection of the unit against water and dust.
Options - Available in configuration from 2 to 12 actuators. - One, two or three speed switches with NO and/or NC contacts. - Mechanical interlock to prevent simultaneous operation of opposite functions.
Certifications - CE marking and EAC certification.
|Conformity to Community Directives||2014/35/UE 2006/42/CE|
|Conformity to Standards||EN 60204-1 EN 60947-1 EN 60947-5-1 EN 60529 EN 418|
|Storage ambient temperature||-40°C/+70°C|
|Operational ambient temperature||-25°C/+70°C|
|Protection degree||IP 65|
|Insulation category||Class II|
|Cable entry||2-6 buttons, rubber cable sleeve (Ø 14÷26 mm)|
8-12 buttons, rubber cable sleeve (Ø 17÷26 mm)
|Markings and homologations||CE, EAC|
|Operating positions||any position|
