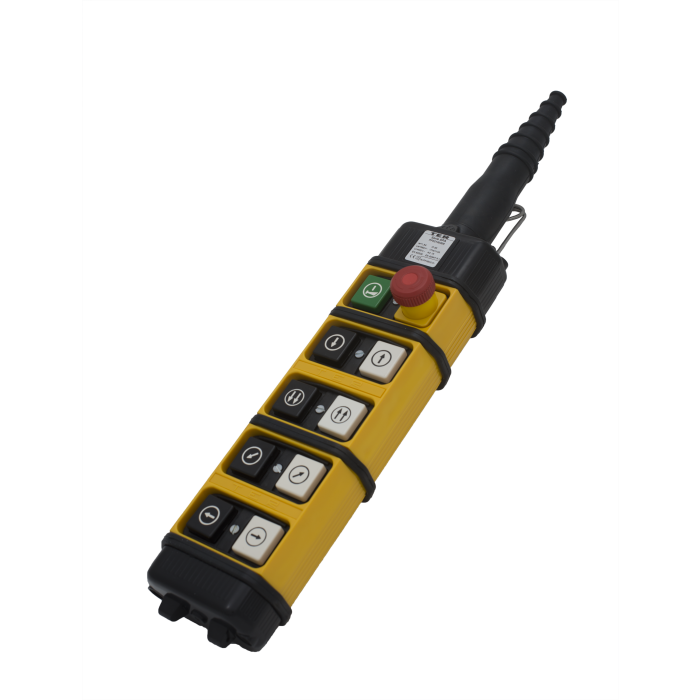

Pendant station for auxiliary control, sturdy and reliable, designed for heavy industry. Modular enclosure with actuators arranged on a double row to pair opposite functions and keep size compact.

Features - Modular enclosure with actuators placed on a double row to enable grouping of a large number of functions in a single control. - Rectangular pushbuttons in thermoplastic material or rubber pushbuttons with symbol disks to ensure protection against dust. - The emergency stop mushroom pushbutton complies with standard EN 418. - Positive opening NC contacts for safety functions. - Mechanical life of switches: 1 million operations. - IP protection degree: SPA is classified IP65. - Extreme temperature resistance: -25°C to +70°C. - All materials and components used are wear resistant and guarantee protection of the unit against water and dust.

Options - Available in configuration from 2 to 20 actuators, arranged on a double row. - One or two speed switches with NO or NC contacts. - Double switches with mechanical interlock to prevent simultaneous operation of opposite functions. - Wide range of actuators: pushbuttons, selector switches and key-selector switches, pilot lights, impulse or latched mushroom pushbuttons with rotation release.

Certifications - CE marking and EAC certification.

Discover over 20 standard SPA models in our webshop!
Conformity to Community Directives2014/35/UE 2006/42/CE
Conformity to StandardsEN 60204-1 EN 60947-1 EN 60947-5-1 EN 60529 EN 418
Storage ambient temperature-40°C/+70°C
Operational ambient temperature-25°C/+70°C
Protection degreeIP 65
Insulation categoryClass II
Cable entryRubber cable sleeve (Ø 14÷26 mm)
Markings and homologationsCE, EAC
Operating positionsany position
