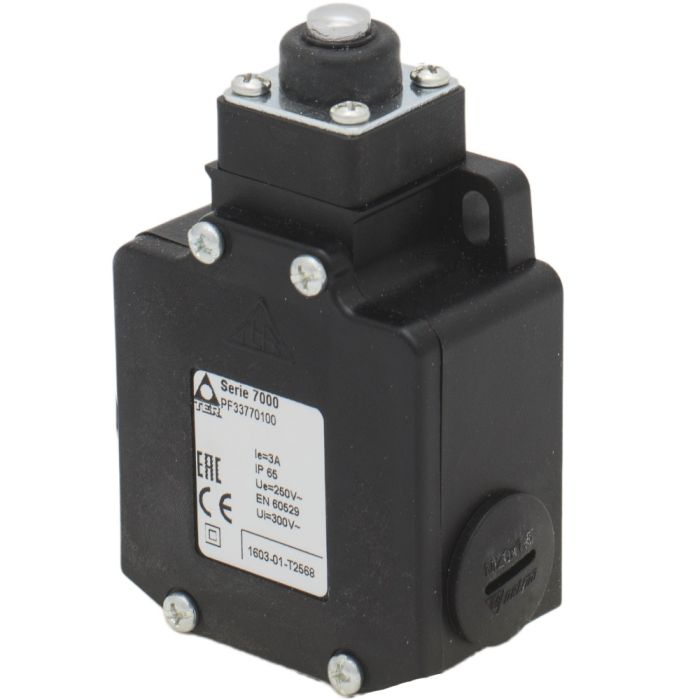

Cross position limit switch designed for controlling the movement of overhead travelling cranes, hoists and complex machine tools. Standard is used in building and industrial hoisting applications, in automation and in the entertainment industry.
Features - Standard box size 80x70x39 mm, with 2 fixing holes. - Positive opening NC contacts for safety functions. - Mechanical life of switches: 1 million operations. - Operation frequency: 3600 operations/hour max. - IP protection degree: Standard is classified IP65 with specific cable clamp M20. - Extreme temperature resistance: -25°C to +70°C. - Enclosure and head in thermoplastic material. - All materials and components used are wear resistant and guarantee protection of the unit against water and dust.
Options - 1 or 2 snap action switches with 1NO+1NC change-over contacts or slow action switches with 1NC contact. - Heads with 15 different types of actuators for different applications.
Certifications - CE marking and EAC certification.
| Conformity to Community Directives | 2014/35/UE 2006/42/CE |
|---|---|
| Conformity to Standards | EN 60204-1 EN 60947-1 EN 60947-5-1 EN 60529 EN 50013 |
| Storage ambient temperature | -40°C/+70°C |
| Operational ambient temperature | -25°C/+70°C |
| Protection degree | IP65 max. with dedicated cable clamp M20 |
| Insulation category | Class II |
| Cable entry | cable clamp M20 |
| Operation frequency | 3600 operations/hour max |
| Operating position | Any position |
