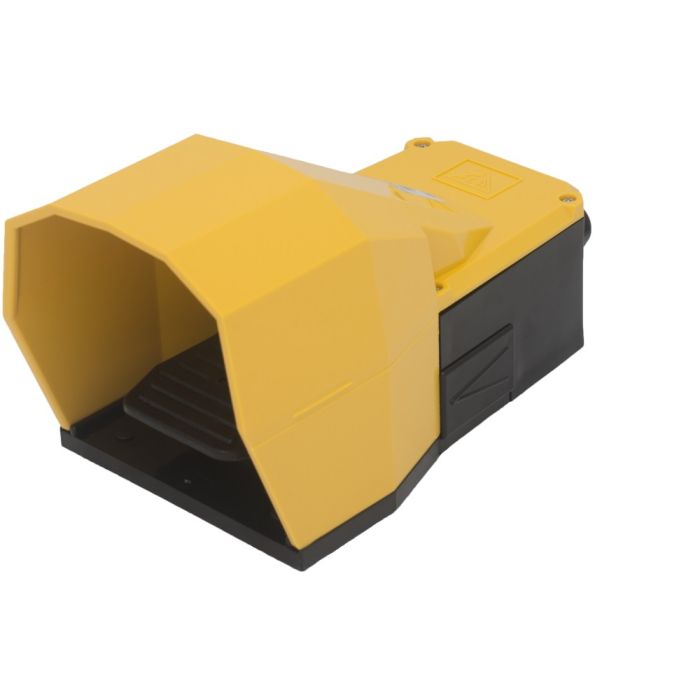

Footswitch for auxiliary control of industrial machines. It acts on the machine’s motor through a power interface, like a contactor.
Features - The emergency stop mushroom pushbutton complies with standard EN 418. - Positive opening NC contacts for safety functions. - Mechanical life of switches: 1 million operations. - IP protection degree: footswitch 6100 is classified IP53. - Extreme temperature resistance: -25°C to +70°C. - Made of plastic material or die-cast aluminium. - Materials and components are shock and wear resistant.
Options - Available with standard protection cover or large cover for safety shoes. - Single or double footswitches fixed on a metal plate, with emergency mushroom pushbutton. - Special footswitch design for pneumatic valve with fixing plate. - It may be fitted with “lock-release” device used for keeping the pedal pressed or with safety device to prevent accidental operation. - Snap or slow action switches with 1NO+1NC contacts, or slow action switches with 2NO+2NC contacts.
Certifications - CE marking.
| Conformity to Community Directives | 2014/35/UE 2006/42/CE |
|---|---|
| Conformity to Standards | EN 60204-1 EN 60947-1 EN 60947-5-1 EN 60529 |
| Storage ambient temperature | -40°C/+70°C |
| Operational ambient temperature | -25°C/+70°C |
| Protection degree | IP 53 |
| Insulation category | Class I |
| Cable entry | cable clamp M20 |
| Markings and homologations | CE |
