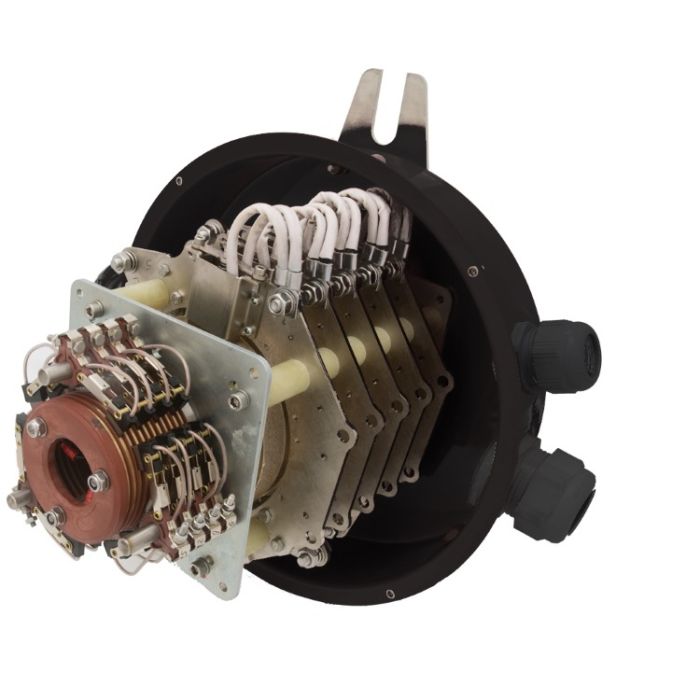

TER’s 300A/500A slip ring collector consists of power rings coupled with signal rings. The device is designed to transfer electric current from a stationary supply point to a rotating structure. It transmits power and control signals, both analogue and digital.
Features TER 300A/500A
- Suitable for transferring DC current for data and control applications
- It supports the major high speed data transmission protocols: Ethernet CAT5, Profibus, Profinet, LAN, Can-BUS, Can-Open
- Silver or golden signal rings
- High quality materials and components guarantee reliability and durability
- IP protection degree: IP65
- Extreme temperature resistance: -20°C to +60°C
Options
- High degree of customization thanks to fully modular construction system
Certifications
- CE marking
| Conformity to Community Directives | 2014/35/UE 2006/42/CE |
|---|---|
| Conformity to Standards | EN 60204-1 EN 60309-1 EN 60529 |
| Storage ambient temperature | -20°C/+60°C |
| Operational ambient temperature | -20°C/+60°C |
| Protection degree | IP 65 |
| Insulation category | Class I |
| Operating positions | Iedere positie |
| Markings and homologations | CE |
