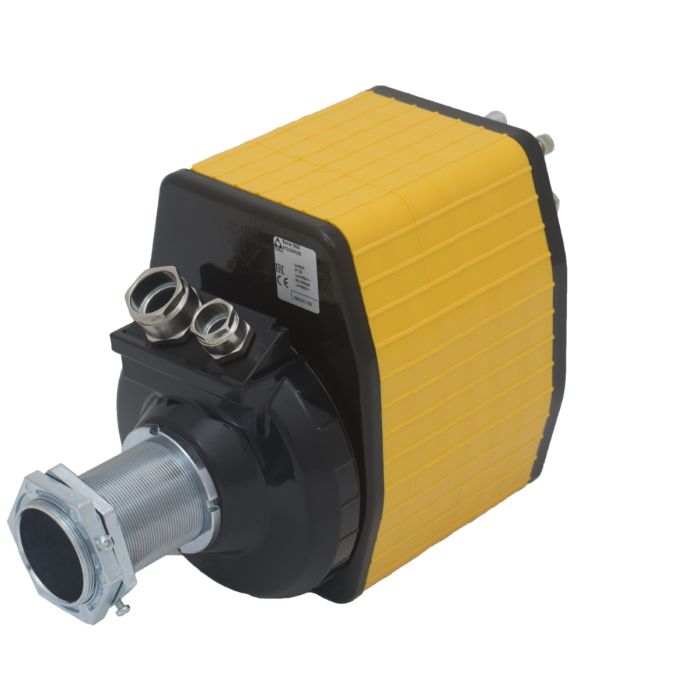

Slip ring collector consisting of rings coupled with brushes, designed to allow current to pass from a fixed to a rotating part and used to supply crane motors and cable winders.
Features - Suitable for transmitting current with 50/60 Hz supply frequency. - The enclosure has small downward holes for air circulation and to prevent problems due to moisture. - The lower support plate is provided with three holes to drain any moisture that may form inside the unit. - The enclosure is made of shock-resistant thermoplastic material to prevent contact with live electrical parts. - Fitted with phosphor bronze brushes. - IP protection degree: collector 50A is classified IP22. - Extreme temperature resistance: -25°C to +70°C.
Options - Up to sixteen 50A line rings coupled with brushes.
Certifications - CE marking and EAC certification.
| Conformity to Community Directives | 2014/35/UE 2006/42/CE |
|---|---|
| Conformity to Standards | EN 60204-1 EN 60309-1 EN 60529 |
| Storage ambient temperature | -40°C/+70°C |
| Operational ambient temperature | -25°C/+70°C |
| Protection degree | IP 22 |
| Insulation category | Class I |
| Cable entry | cable clamps M20 - M25 |
| Operating positions | any position |
