Charlie

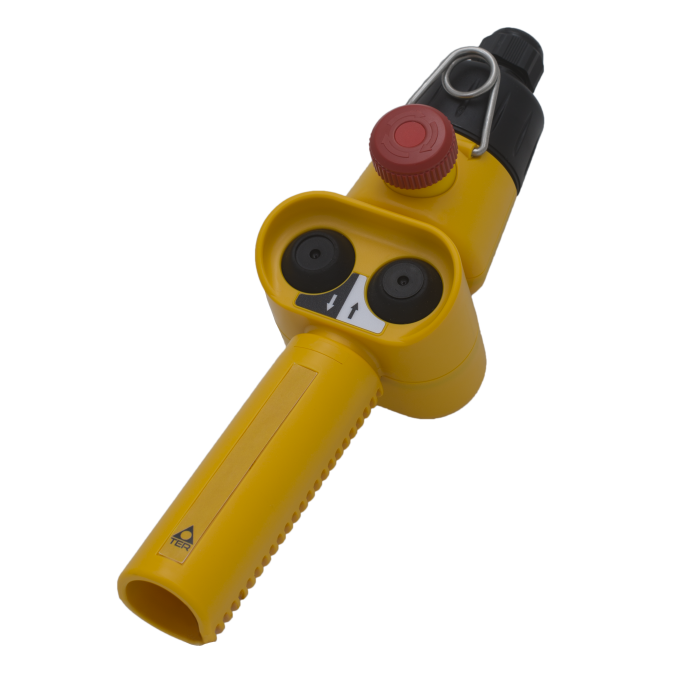

Compact-sized pendant station for auxiliary control. Modern user-friendly design, developed by an industrial design firm on technical, anthropomorphic, futuristic and ergonomic specifications. Easy to handle and designed to reduce installation time and costs and maintenance down time.

Features - Reduced time and costs for installation and wiring: the switches are assembled inside the pendant station without screws, with all the terminals facing the cable inlet and screws in the opposite direction to facilitate wiring. - A threaded ring is used to secure the enclosure and cover, providing easy access to the internal components without any need for tools or screws. - Thanks to the hollow handle the control station can be quickly and easily set down onto a pin. - The emergency stop mushroom pushbutton complies with standard EN 418. - Positive opening NC contacts for safety functions. - Mechanical life of switches: 1 million operations. - IP protection degree: Charlie is classified IP65. - Extreme temperature resistance: -25°C to +70°C. - All materials and components used are wear resistant and guarantee protection of the unit against water and dust.

Options - Available in configuration with 2 or 3 actuators. - Single switches with NO or NC contacts and double switches with NO contacts, one or two speeds, with electrical interlock to prevent simultaneous operation of opposite functions.

Certifications - CE marking and EAC certification.
