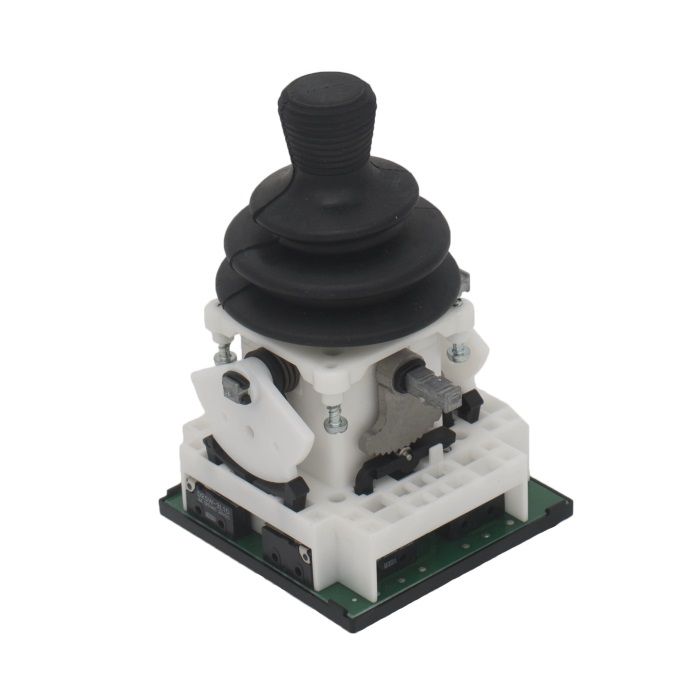

Small-sized, compact and handy joystick for control of industrial machines. Juliet is a user-friendly, ergonomic product, suitable for daily use in an industrial environment.
Features - Designed to facilitate maintenance, reducing down time and costs: the switches are assembled on pull-out or fixed terminal boards. - Light and handy: weight 250 grams. - Positive opening NC contacts for safety functions. - Mechanical life of switches: 5 million operations. - IP protection degree: Juliet is classiied IP00 or IP65, if housed in Juliet-PK or in a speciic enclosure. - Extreme temperature resistance: -25°C to +70°C.
Options - Available with up to 5 speeds for each direction. - Stepped or linear operation. - Cross or 360° movement. - Available with terminal boards or potentiometers.
Certifications - CE marking and EAC certification.
| Conformity to Community Directives | 2014/35/UE 2006/42/CE |
|---|---|
| Conformity to Standards | EN 60204-1 EN 60947-1 EN 60947-5-1 |
| Storage ambient temperature | -40°C/+70°C |
| Operational ambient temperature | -25°C/+70°C |
| Protection degree | IP 00 (IP 65 max. when assembled in Juliet-PK or in a speciic enclosure) |
| Operating positions | any position |
| Weight | 250 g |
| Markings and homologations | CE EAC |
