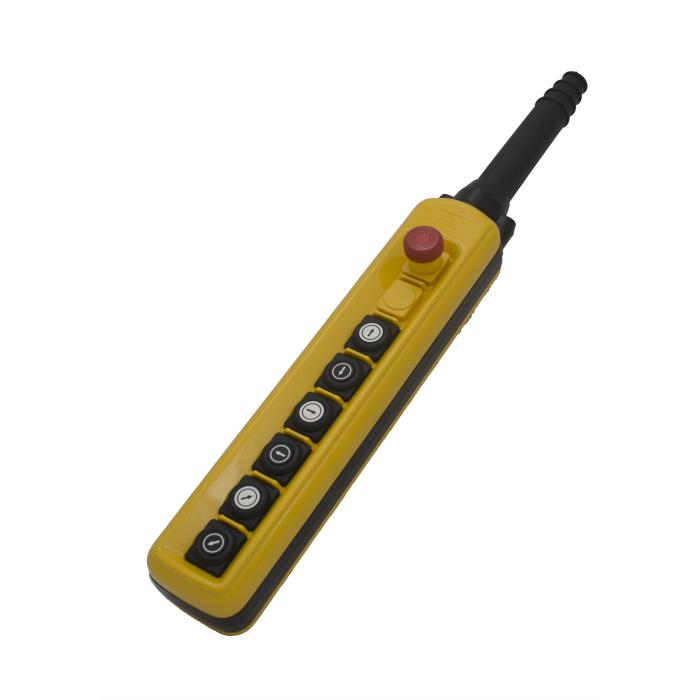

Pendant station for direct control of industrial machines. Sturdy and handy, NPA-CP is specifically designed for heavy duty in industrial environments.

Features - The cable sleeve can be angled up to 20° to give the operator the best view of all the control elements and enable a natural, comfortable working position. - Rubber pushbuttons with symbol disks to ensure protection against dust and prevent jamming when the control station is used in harsh environments. - Two-colour moulded pushbutton disks to guarantee clear reading and wear resistance - The emergency stop mushroom pushbutton complies with standard EN 418. - Positive opening NC contacts for safety functions. - Mechanical life of switches: 1 million operations. - IP protection degree: NPA-CP is classified IP65. - Extreme temperature resistance: -25°C to +70°C. - All materials and components used are wear resistant and guarantee protection of the unit against water and dust.

Options - Available in configuration from 2 to 8 actuators. - 1 or 2 speed two-pole switches or 1 speed three-pole switches, with or without brake contact, for direct control. - Mechanical interlock to prevent simultaneous operation of opposite functions.

Certifications CE marking and EAC certification.

Conformity to Standards2014/35/UE 2006/42/CE
Einhaltung der NormenEN 60204-1 EN 60947-1 EN 60947-3 EN 60529 EN 418
Storage ambient temperature-40°C/+70°C
Operational ambient temperature-25°C/+70°C
Protection degreeIP 65
Insulation categoryClass II
Cable entry2-6 buttons, rubber cable sleeve (Ø 10÷18 mm)
8 buttons, rubber cable sleeve (Ø 17÷26 mm)
Markings and homologationsCE EAC
Operating positionsany position
