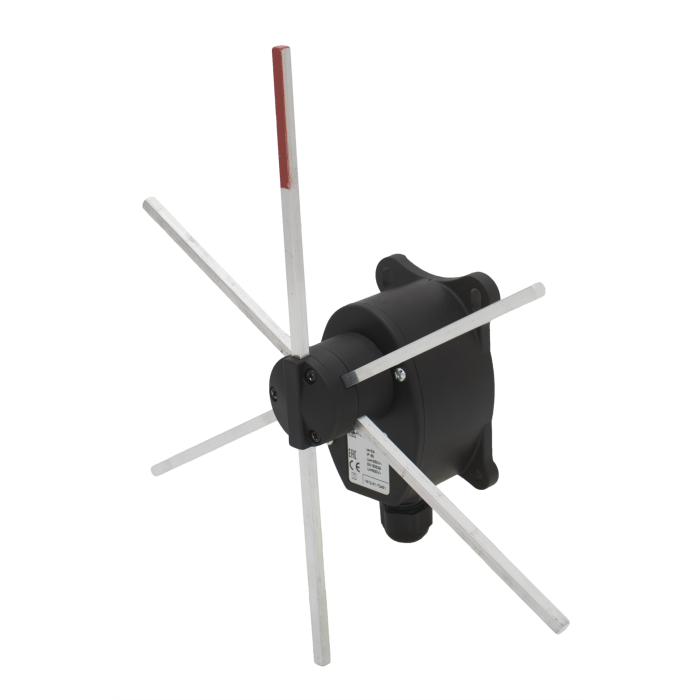

Cross position limit switches designed for controlling the movement of overhead travelling cranes, hoists and complex machine tools. Tango has rods with maintained positions every 60°.
Features - Modern design and overall dimensions studied to facilitate installation and maintenance operations. - 4 fixing holes. - Rods with 4 maintained positions every 60°. - Positive opening NC contacts for safety functions. - Mechanical life of switches: 1 million operations. - Operation frequency: 3600 operations / hour max. - IP protection degree: Tango is classified IP65. - Extreme temperature resistance: -25°C to +70°C. - Enclosure and head in thermoplastic material (nylon reinforced with fiberglass) and internal components in technopolymers to guarantee long life-cycle and constant performance. - All materials and components used are wear resistant and guarantee protection of the unit against water and dust.
Options - Slow action switches with 1NC or 1NO contacts. - Available with 2, 3 or 4 switches and different rod lengths.
Certifications - CE marking and EAC certification.
|Conformity to Community Directives||2014/35/UE 2006/42/CE|
|Conformity to Standards||EN 60204-1 EN 60947-1 EN 60947-5-1 EN 60529|
|Storage ambient temperature||-40°C/+70°C|
|Operational ambient temperature||-25°C/+70°C|
|Protection degree||IP 65|
|Insulation category||Class II|
|Cable entry||cable clamp M20|
|Operation frequency||3600 operations/hour max|
|Markings and homologations||CE EAC|
