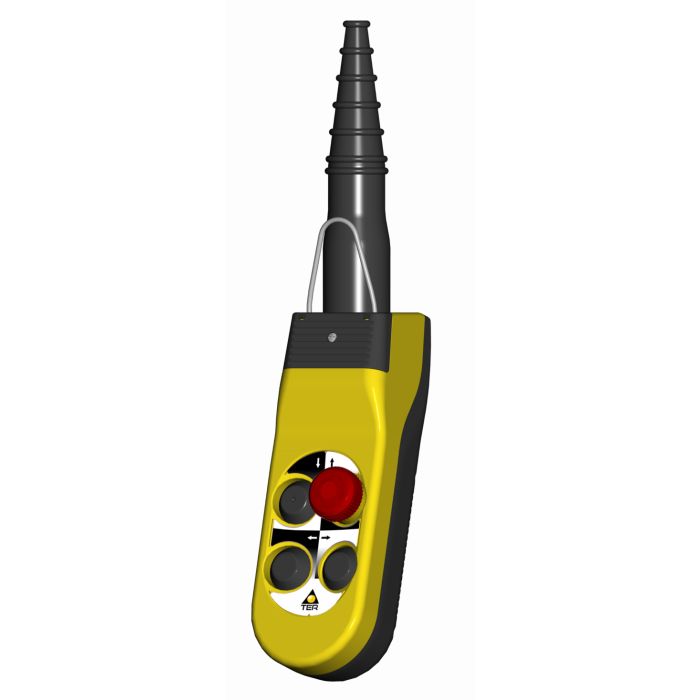

ALPHA pendant, 4 buttons interlocked, single speed

ALPHA pendant control stations

The ALPHA Pendant Control Stations are used for auxiliary control. They come with an innovative and modern design. Each the graphic element refers to a specific technical function.
Resulting from a thorough analysis of the ergonomic features combined with the research of a graphic style suitable for a modern industrial environment ALPHA control stations are easy to handle thanks to their size and shape.

Features ALPHA

- Reduced installation and wiring time and costs: the switches feature terminals facing the cable clamp of the control station and screws on the opposite site to facilitate wiring.
- The control station has an inclination, giving the operator the best view of all the control elements and enabling a natural, comfortable working position.
- The emergency stop mushroom pushbutton complies with standard EN 418.
- Positive opening NC contacts for safety functions.
- Mechanical life of switches: 1 million operations.
- IP protection degree: ALPHA is classified IP65.
- Extreme temperature resistance: -25℃ to+70℃.
- All materials and components used are wear resistant and guarantee protection of the unit against water and dust.
- Insulation category: Class II
- Cable entry: Rubber cable sleeve (Ø 14÷26 mm)
- Operating positions: any position

Certifications & Standards

- CE marking, EAC certification. Conformity to Community Directives: 2006/95/CE 2006/42/CE
- Conformity to EN 60204-1 EN 60947-1 EN 60947-5-1 EN 60529 EN 418
- Markings & homologations: CE, EAC
