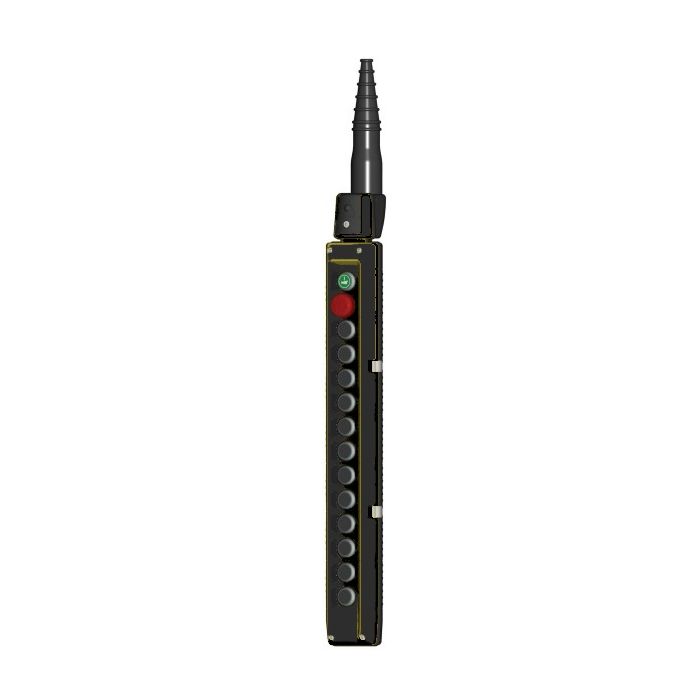

Pendant control station 'MIKE 14': 12 double speed pushbuttons, reset-alarm button and emergency stop button. Color casing: black. Protection class: IP67/IP69K
Productcode: F70DB12001200001
€617.38
( Incl. Tax: €747.03 )
Expected time of delivery: In consultation
The MIKE 14 from TER is a pendant control station for auxiliary control of modern ergonomic shape, easy to handle, user friendly and sturdy. This pendant control station is the result of careful analysis of ergonomic aspects. It is rich in high-performing features to suit the most demanding applications.
- reduced installation and wiring time & costs! The cable inlet and the switches fitted in the base of the control station are separated from the actuators, installed on the cover.
- Innovative suspension system with concealed cables to enable rapid, correct, ergonomic installation.
- Rubber pushbuttons with symbol disks to ensure protection against dust and prevent jamming when the control station is used in harsh environments.
- The emergency stop mushroom pushbutton complies with standard ISO 13850.
- Positive opening NC contacts for safety functions.
- Mechanical life of pushbuttons and switches: 10 million operations.
- IP protection degree: MIKE 14 is classified IP66, IP67 and IP69K.
- IK protection degree: MIKE 14 is classified IK08.
- NEMA protection degree: MIKE 14 is classified Type 1, 4 and 4X.
- Extreme temperature resistance: -40℃ to +80℃.
- All materials and components used are wear resistant. They guarantee protection against water and dust.
- CE marking, cULus* marking and EAC certification.
- Complies with accident prevention regulation BGV C 1 (only for Germany).
Features MIKE 14
- reduced installation and wiring time & costs! The cable inlet and the switches fitted in the base of the control station are separated from the actuators, installed on the cover.
- Innovative suspension system with concealed cables to enable rapid, correct, ergonomic installation.
- Rubber pushbuttons with symbol disks to ensure protection against dust and prevent jamming when the control station is used in harsh environments.
- The emergency stop mushroom pushbutton complies with standard ISO 13850.
- Positive opening NC contacts for safety functions.
- Mechanical life of pushbuttons and switches: 10 million operations.
- IP protection degree: MIKE 14 is classified IP66, IP67 and IP69K.
- IK protection degree: MIKE 14 is classified IK08.
- NEMA protection degree: MIKE 14 is classified Type 1, 4 and 4X.
- Extreme temperature resistance: -40℃ to +80℃.
- All materials and components used are wear resistant. They guarantee protection against water and dust.
Certifications
- CE marking, cULus* marking and EAC certification.
- Complies with accident prevention regulation BGV C 1 (only for Germany).
| Number of buttons | 14 |
|---|---|
| Type buttons | Double |
| Color | Black |
| Emergency stop button | Yes |
| Function button | Reset-alarm |
| Atex | No |
| IP protection | IP66, IP67, IP69K |
