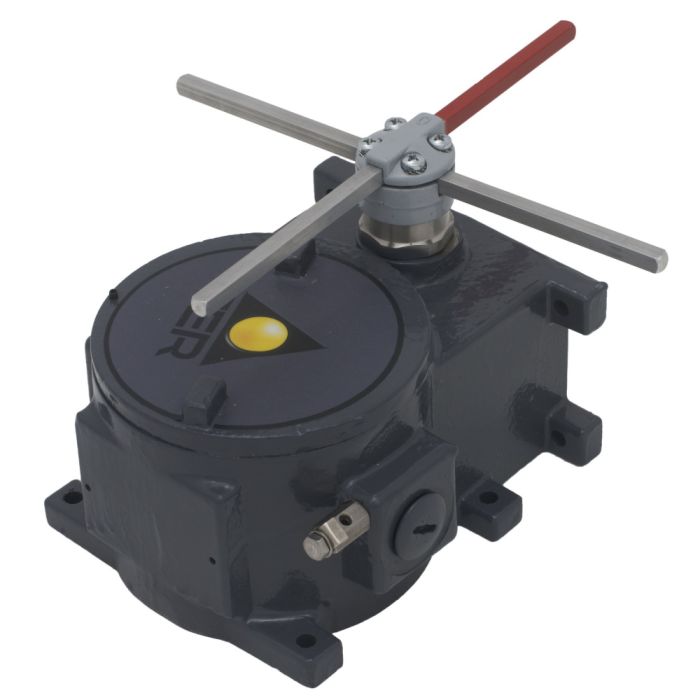

LIMITEX AP position limit switch, 4 switches, Rod cross-type 200mm, swiching moment at 70° L/R

Limitex AP: explosion proof cross limit switch

Limitex AP position cross limit switch: rugged & reliable, designed to control the movement of overhead travelling cranes, hoists and complex machine tools that are operating in potentially explosive ATEX areas. Ex cross limit switch.

Features Limitex AP

- Positive opening NC contacts for safety functions
- Mechanical life of switches: 1 million operations
- Operation frequency: 3600 operations/hour max
- IP protection degree: Limitex AP is classified IP66. / Protection degree: IP66
- Extreme temperature resistance: -50℃ to +60℃
- Cable entry: Nr. 2 M20x1.5 (standard)
- It features rugged external enclosure made of G20 cast iron and cross rod support made of zinc alloy. Internal components are made of materials which guarantee long mechanical life and continuous performance.
- All materials and components used are wear resistant and guarantee protection of the unit against water and dust.

Options

- 2 or 4 snap action switches with 1NO+1NC change-over contacts
- Cross rods move to 3 or 4 maintained positions, with movement every 90°
- Modular adapter with fixing points
- M25x1.5 or ½ NPT cable entries

Cerifications, markings & homologations

- CE EX, IEC, IECEx markings
- Atex certification EN 60079-0:2009, EN 60079-1:2007, EN 60079-31:2009
- Conformity to Standards IECEx IEC 60079-0:2011, IEC 60079-1:2007-04 and IEC 60079-31:2008
- INERIS 13ATEX0020X certificate
- IECEx INE 13.0051X certificate
- Certification for group I, IIA, IIB and IIC
- Conformity to Community Directives: 2014/35/UE 2006/42/CE
- Conformity to Standards: EN 60204-1 EN 60947-1 EN 60947-5-1 EN 60529
