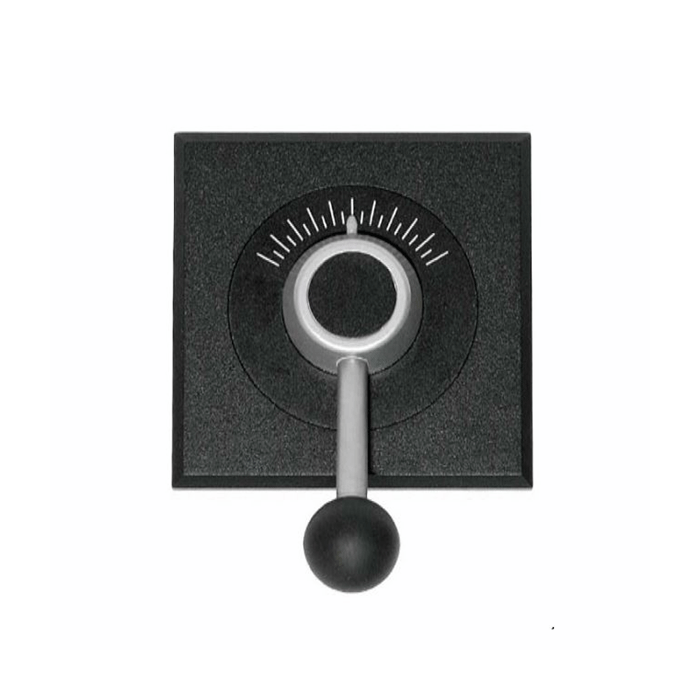

The Lilaas LF80 is a small and reliable control lever intended for rudder control. The unit is designed for electronic control and is equipped with potentiometers.
Technical description
• Panel plate: Black coated aluminium
• Scale foil:Countersunk self-adhesive scale
• Handle: Dulled stainless steel and POM (plastic material)
• Standard potentiometer: 5 kΩ
• Potentiometer operation: Spur gears
Options Lilaas LF80
• Termination
• Spring-return to neutral position
• Motorized axes
• Light
• Different colors
• Alternative potentiometers
• Custom design: Scaling, panel plate, hand wheel
| Materials / Finish | Steel A2, AI, POM, alodine, powder coating |
|---|---|
| Weight | Ca 0,7 - 1 kg |
| Movement | ±60˚ |
| Electrical movement | 319˚ |
| Detent | In zero |
| Panel plate | 96 x 96 mm |
| Standard potentiometer | Single 5 kΩ linear |
| Termination | 16 pins contact with plug |
| Type approval | EN/IEC 60945, ABS, BV, DNV, GL, KR, LR, NK, RINA, RS, CRS |
