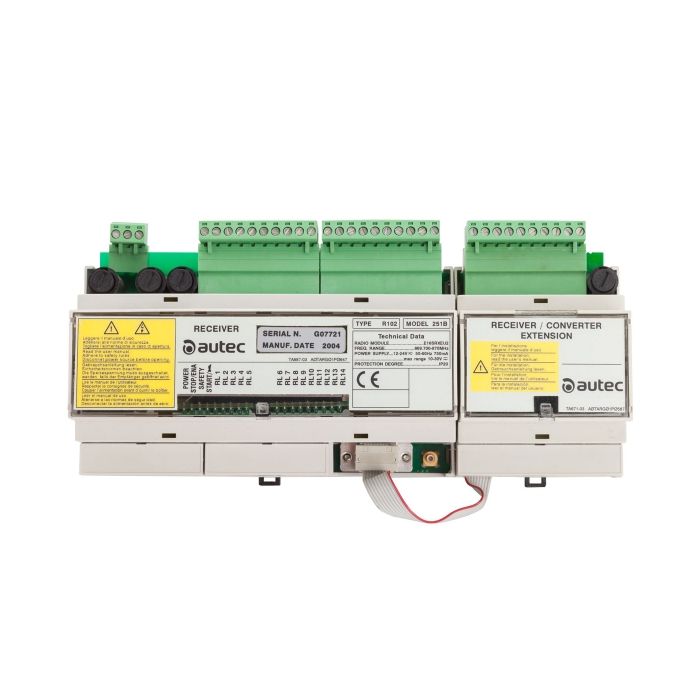

Receiver unit suitable for 10-30 Vac / Vdc power supplies. This receiver unit is ideal for integration in a switch box. Maximum of 20 relay outputs.

Applications

Suction and and cleaning vehicles Automatic warehouse Concrete pumps Concrete vibrators Forestry and Agriculture vehicles Forestry haulage systems Crushers  / Screeners Port cranes Provision cranes Cutting and pressing machines Rock-Breaker booms Ladders Magnets / underhook attachments Mixers Mobile Boat haulers Mobile Boat trolleys Overhead cranes Sewer / Cleaning vehicles Robotics Tow vehicles Grinders for agriculture Railway automation Trailers Machine tools Hoists / winches Side loaders

Power supply 10-30 Vac / Vdc
Antenna dedicated
Protection degree IP 20
Operating and storage temperature operating: (-20 °C) ÷ (+70 °C) / (-4 °F) ÷ (+158 °F)
storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F)
Dimensions (160+72)x110x75 mm
(6.3+2.83)x4.33x2.95 mm
Weight 0,9 kg
1.98 lb
