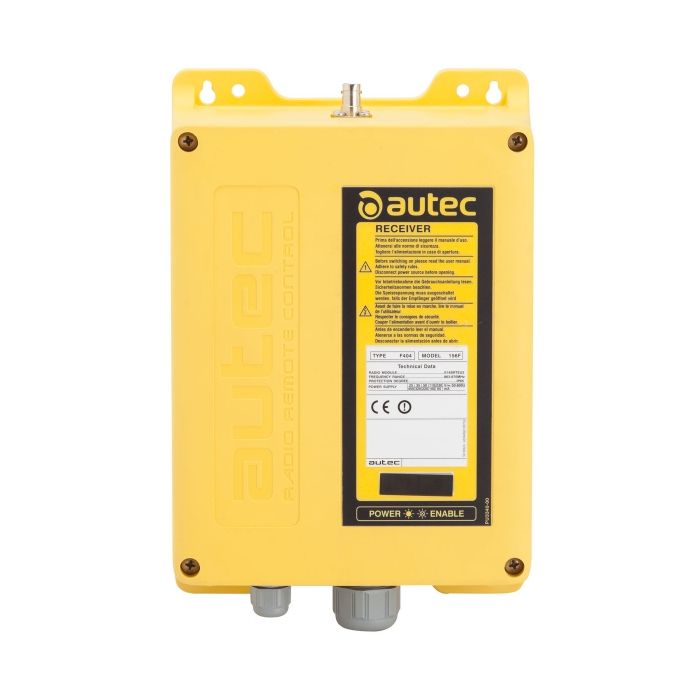

Receiver unit suitable for 25/35/50/110/230 Vac +/- 20% OR 12Vdc +/- 25% OR 24Vdc +/- 25% power supplies. All designs can be fitted with a maximum of 20 relay outputs. The receiver is equipped as standard with an external antenna. The receiver can be fitted with a 16, 24, 32 or 40-pole connector or gland.

Applications

Suction and and cleaning vehicles Automatic warehouse Concrete pumps Concrete vibrators Forestry and Agriculture vehicles Forestry haulage systems Crushers  / Screeners Port cranes Provision cranes Cutting and pressing machines Rock-Breaker booms Ladders Magnets / underhook attachments Mixers Mobile Boat haulers Mobile Boat trolleys Overhead cranes Sewer / Cleaning vehicles Robotics Tow vehicles Grinders for agriculture Railway automation Trailers Machine tools Hoists / winches Side loaders

Power supply 25/35/50/110/230 Vac +/- 20%
Antenna Dedicated
Protection degree IP 65
Operating and storage temperature operating: (-20 °C) ÷ (+70 °C) / (-4 °F) ÷ (+158 °F)
storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F)
Dimensions 180x230x95 mm
Weight 2,6 kg
5.73 lb
