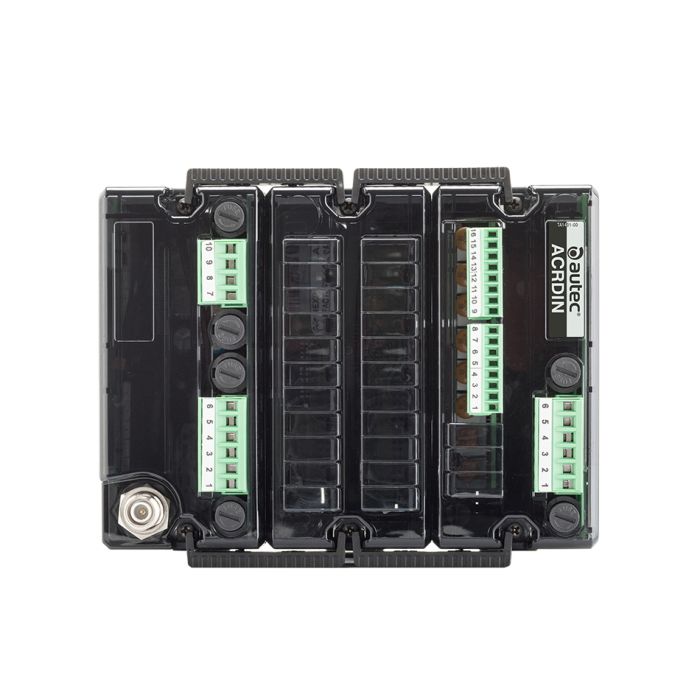

DIN RAIL receiver: ACRDIN / MVRDIN
The ACRDIN / MVRDIN is a DIN RAIL is a receiving unit specifically designed for installation inside the electric cabinet of a machine.
This DIN RAIL receiver holds of at least one CPU module and one Power Supply module. Thanks to its modular design, up to 4 expansion modules can be added. Each can host up to two optional boards.
AC / DC power and external antenna. Installation of receiving unit by hooking DIN guide to rail.
This product is designed to satisfy even the most severe standards for vibration. It has up to 71 configurable on/off outputs, plus START and STOP. Following interfaces are supported: RS-232/485, CANopen, Profibus DP, PROFINET, EtherCAT® and EtherNet / IP ™.
|Power supply||ACRDIN: 24-230 VAC
MVRDIN 12-24 VDC / 24 VAC
|Antenna||external antenna with 1,3 or 5 meter cable length|
|Number of EXPANSION MODULES||up to 4|
|Max number of Optional Boards||ACRDIN: up to 8
MVRDIN: up to 9
|Max number of outputs||71 on / off + START and STOP|
|Rated current of STOP / Safety outputs||4A (250 VAC) / 4A (30 VDC)|
|Safety performance of the STOP function (EN ISO 13849-1)||up to PL e|
|Connecting interfaces||terminal blocks|
|Dimensions||53.30 x 127.41 x 96.20 mm|
|Weight||CPU MODULE: 315 g
EXPANSION MODULE: 240 g
POWER SUPPLY MODULE (ACRDIN): 250 g
POWER SUPPLY MODULE (MVRDIN): 270 g
