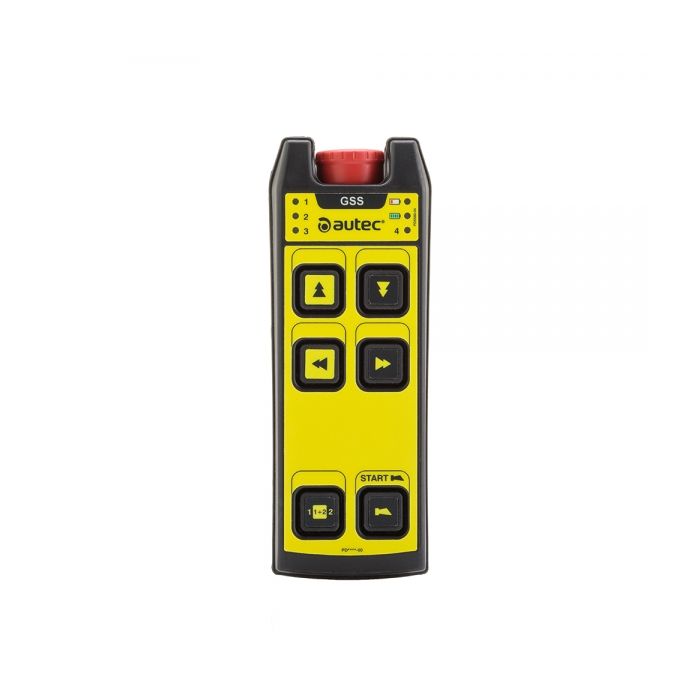

The A8, A6 & A4 multi-function pushbutton transmitters (named according to the number of pushbutton functions) are light and compact solutions for lifting and automation. They are robust and durable, resistant to drops from 1.5 meters and have navigation menus to optimize functionality and performance according to the demands of the application. The standard lithium ion battery is both internal and easily removable. ID internal tx memory holds the unique address of the radio control and all of the information necessary for machine use.
Standard Kit Accessories
Docking station
Heavy Duty Cover with belt
Available options
Charger Plug
Nest
USB adapter (with EU plugr)
Soft cover
Applications
| Power supply | 3,7 VDC (Li-ion) |
|---|---|
| Frequency band | 433.05-434.79 MHz (64 channels) 915-928 MHz (256 channels) |
| Hamming distance | ≥9 |
| Typical working range | 75-100 m |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) | 40 h |
| Safety performance of the STOP function (EN ISO 13849-1) | PL d |
| Protection degree | IP 65 (NEMA 4) |
| Operating and storage temperature | operating -20°C ÷ +55°C (-4°F ÷ +131°F) storage: -40°C ÷ +70°C (-40°F ÷ +158°F) |
| Dimensions | 64,5 x 179 x 37,5 mm 2.54 x 7.05 x 1.48 in |
| Weight | 0,25 kg 0.551 lb |
