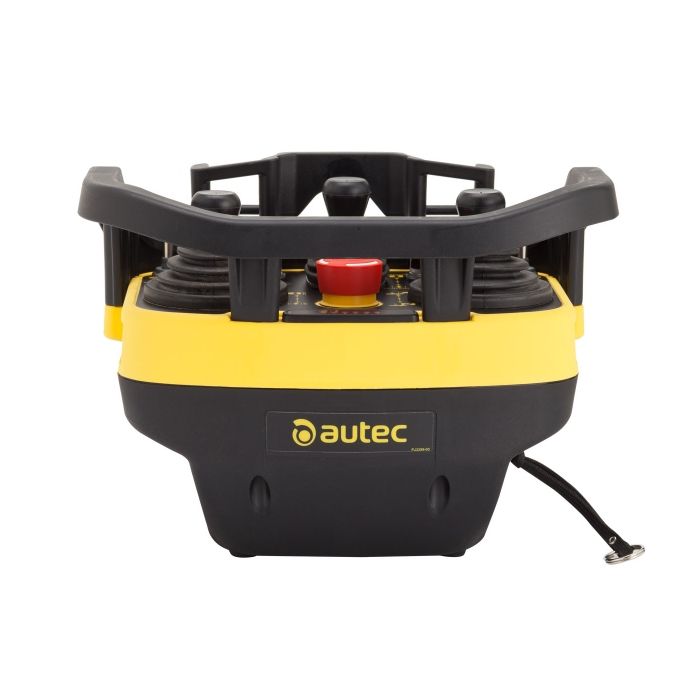

Customisable versions with up to 3 dual-axis joysticks and several additional actuators. Available with digital commands or also including proportional commands. Polyamide / fiberglass housing for greater resistance to external agents, IP65 protection degree, comfortable design for easy control.

Accessories
Waist belt

Options
Cable Control
Zero G Sensor
Aluminum Panel (for more difficult working environments)
IR Sensor
External Buzzer
1.54’’ or 2.7’’ display (OLED or transflective)

Applications

Machine tools Side loaders Forestry haulage systems Concrete vibrators Construction cranes Sewer / Cleaning vehicles Cutting and pressing machines Mobile Boat trolleys Overhead cranes Concrete batch plants Port cranes Tunnelling machines

Power supply 7,4 Vdc (Li-ion)- 7,2 Vdc (NiMH)
Frequency band 433.05-434.79 MHz (64 channels)
915-928 MHz (256 channels)
Hamming distance ≥9
Typical working range 75-100 m
Average usage time with fully charged battery (continuous use at 20°C / 68°F) 20 h (Li-ion) - 10 h (NiMH)
Safety performance of the STOP function (EN ISO 13849-1) PL d
Protection degree IP 65 (NEMA 4)
Operating and storage temperature operating -20°C ÷ +55°C (-4°F ÷ +131°F)
storage: -40°C ÷ +70°C (-40°F ÷ +158°F)
Dimensions 260x200x190 mm
10.24x7.87x7.48 in
Weight 2 kg
4.41 lb
