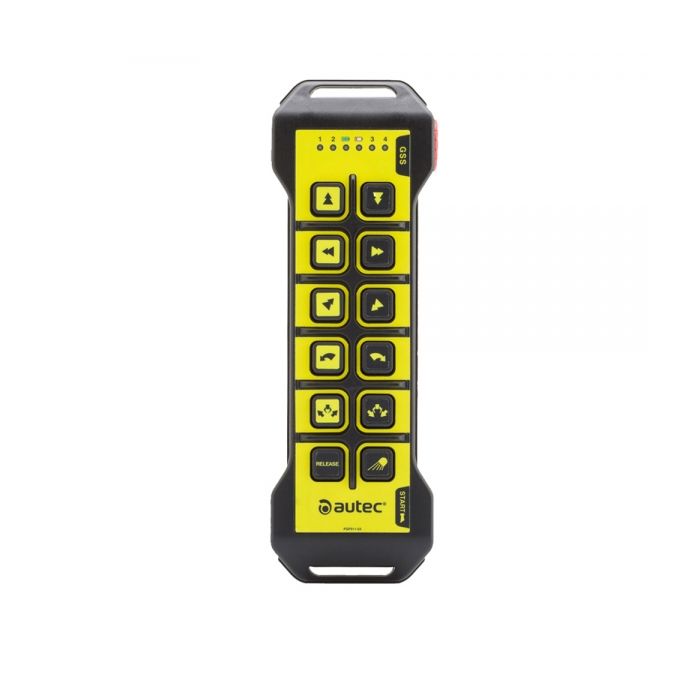

The LK Neo is a push-button handset with 12 push-buttons. Frequency scan allows the LK Neo remote control to identify available frequencies on start-up. Bi-directional radio communication allows receipt of machine status information on the transmitter. Operation, functions and frequency settings can be programmed to improve reliability and safety during use. The exchangeable battery means work can continue without interruption.
Accessories
Soft cover
Shoulder strap pouch
Options
Key ID 0-1
2/3 position switch
Rotative switch
Extractable key
Potentiometer
IR Sensor
Zero-G Sensor
Enable switch
1.8” color display (with 6 or 10-button versions)
External Buzzer
Heavy Duty cover
Applications
| Power supply | 3.7 VDC (Li-ion) - 3.6 VDC with NiMH battery |
|---|---|
| Frequency band | 433.05-434.79 MHz (64 channels) 915-928 MHz (256 channels) |
| Typical working range | 75-100 m |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) | > 20 h with Li-ion battery > 10 h with NiMH battery |
| Safety performance of the STOP function (EN ISO 13849-1) | PL d |
| Protection degree | IP 65 (NEMA 4) |
| Operating and storage temperature | operating -20°C ÷ +55°C (-4°F ÷ +131°F) storage: -40°C ÷ +70°C (-40°F ÷ +158°F) |
| Dimensions | 265 x 85 x 49mm 10.43 x 3.35 x 1.92 in |
| Weight | 0.45 kg 0.99 lb |
