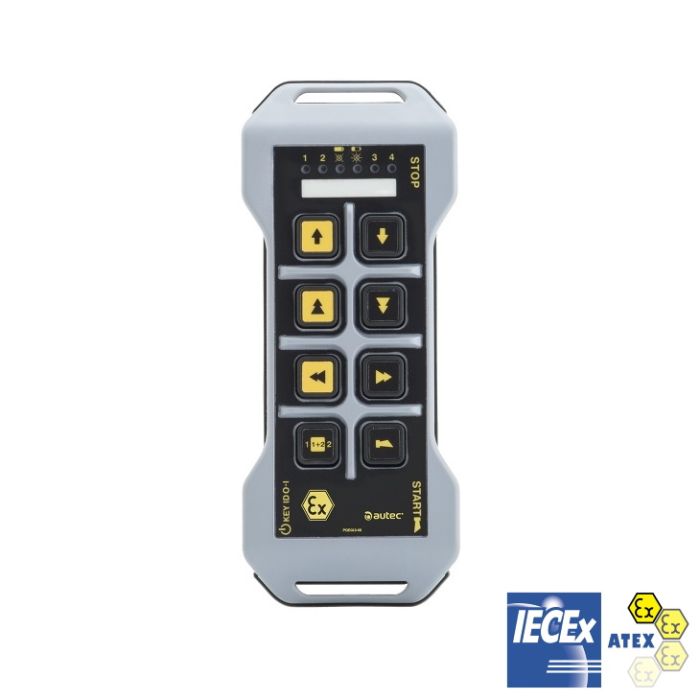

The LK NEO 8 EX pushbutton transmitter is a remote control unit suitable for environments with the risk of explosion, such as petrochemical, heavy industry, chemicals, pharmaceuticals, mining, marine & offshore. The transmitter, available 8 pushbuttons, complies with both the ATEX directive 2014/34/UE (zone 0/20 or zone 2/22) and the IECEx certification scheme (zone 0/20).
The LK NEO 8 EX can be combined with any of the receiving units in the AIR Series provided that the receiver is placed outside explosion-risk zone. An alternative option is to supply an Autec receiving unit inside an explosion-proof enclosure. Elma Systems has decades of experience when it comes to designing and installing Ex cabinets and enclosures.
Available accessories
Shoulder strap, suited for use in areas with risk of explosion
Options
Rotative switch
Side button
Applications LK NEO 12 EX
| Power supply | 3.7 VDC (Li-ion) |
|---|---|
| Frequency band | 433.05-434.79 MHz (64 channels) |
| Typical working range | up to 100 m |
| Average usage time with fully charged battery (continuous use at 20°C / 68°F) | > 8 h with Li-ion battery |
| Safety performance of the STOP function (EN ISO 13849-1) | up to PL d |
| ATEX ZONE 0/20 |
ATEX marking: |
| ATEX ZONE 20/22 |
- ATEX II 3G Ex ic IIC T5 Gc Tamb: -20/+50°C |
| Dimensions | 207.5 x 85 x 49 mm 8.17 x 3.35 x 1.92 in |
| Weight | 380 g 0.837 lb |
