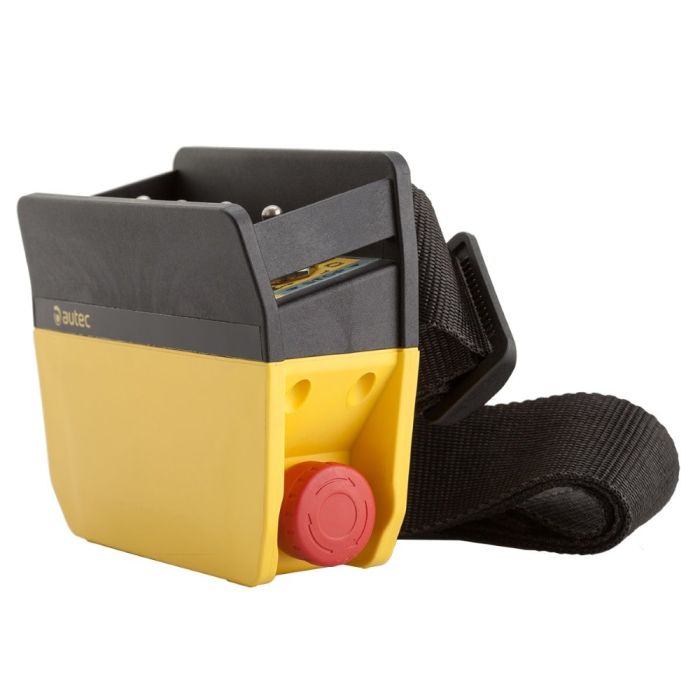

The safe and reliable SIDEKICK transmitting unit has bi-directional radio with an extended working range. SIDEKICK is compact and very waist-portable thanks to an ergonomic design, extremely reduced weight and an inclined control panel. It’s configurable with selector levers, a rotary switch, potentiometer or a side button. It has a STOP function, classified up to PL d, which complies with EN ISO 13849-1.

Automatic frequency search at start-up
Replaceable Li-Ion internal battery
Motion Sensor that intervenes in case of impact, fall or inclination of the transmitting unit
4 data feedback LEDs to display machine status
Data Log for recording of remote control operations
PIN start-up: prevents unauthorized use
CAN communication and serial ports

Pre-disposition actuator for emergency calls (horn)
Intermittent brake
Can be used while charging

Battery recharge: cable with USB connector & AC power supply or cigar jack


Tow vehicles Forestry and Agriculture vehicles

Power Supply 3.7 VDC with internal Li-ion battery
Frequency Band 433.05-434.79 MHz (64 channels)
Typical working range 100 m
Safety performance of the STOP function up to PL d (EN ISO 13849-1)
Selector levers military standard MIL-83731
Autonomy with fully charged battery (continuous use at 20°C / 68°F) > 16 h
Protection degree IP 65
Operating temperature (-20°C) ÷ (+55°C) / (-4°F) ÷ (+131°F)
Storage temperature (-40°C) ÷ (+70°C) / (-40°F) ÷ (+158°F)
Dimensions 138x118x60 mm / 5.43x4.65x2.36 in
Weight 450 g / 0.99 lb
