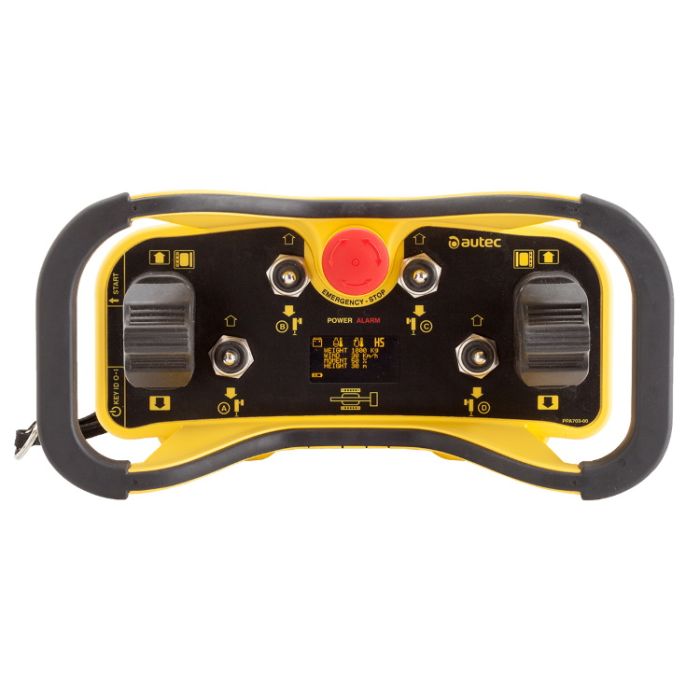

WC-S

Cable control compact size including 2 proportional outputs (voltage), up to 8 PWM proportional outputs (4 bi-directional axes), up to 8 digital outputs, a fieldbus output (CANopen 2.0A), 4 digital inputs and a removable start key switch.

Accessories WC-S cable control

• Waist belt
• Shoulder harness

Options

• 1.54'’ transflective display
• 10 or 19-pin cable
• Cable Gland
• M12 connectors

STOP or EMERGENCY STOP

With the WC-S cable consol the user can take advantage of an additional benefit: a red “push” button that, thanks to its typical characteristics and appropriate wiring, can have its safety circuits integrated in the machine. This allows the button to be used as either a STOP or an EMERGENCY STOP button.

“STOP” is defined as a function that allows the machine to stop only in safe conditions, whereas an “emergency stop”(once activated)provides a stop to hazardous activities of a machine in the event of an emergency. The button used in the cable control unit can perform either a [STOP] or [EMERGENCY STOP] function, as it conforms to international standards and regulations that govern such as, ISO EN 13850, EN / IEC 60947-5-1, EN / IEC 60947- 5-5 and Directive LVD 2006/95/CE.

When used as an [EMERGENCY STOP], the push-button, (which carries a load up to 3 A/ 30 VDC), in addition to being red in color also has a yellow background and is indicated with the words "E-STOP" or "EMERGENCY STOP". How to use this button is a choice based on the application requirements and risk analysis of the machine.
