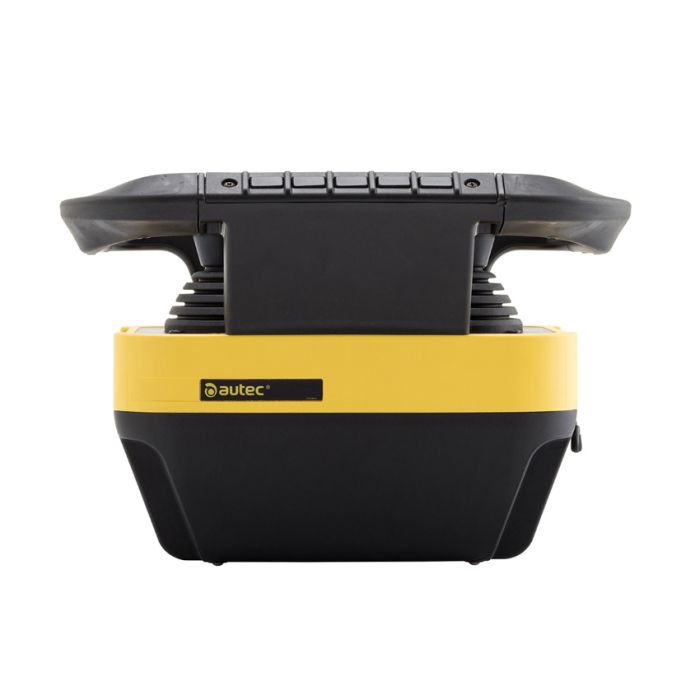

The COMPACT DJC from Autec is a new portable unit for the remote control of machinery in multiple industries. With a highly reliable radio link and compliance to functional safety requirements this “compact” belt and harness transmitter is suited for use in demanding environments.
Studied with an ergonomic shape to prevent involuntary activations and issues due to external interference during operation, the Compact DJC's functional-area is optimized for a perfect access/grip of the actuators on top and sides. The top-frame integrate comfortable rubber handles and a TFT 2.8” color display. In all configurations mechanical and chemical resistance is granted as well as IP65 and 1.5m fall.
Accessories
- Shoulder harness or waist belt
- Extractable NiMH or Li-Ion battery and charger
Options Compact DJC
- Cable Control
- Aluminum Panel (for more difficult working environments)
- IR Sensor
- External Buzzer
- 2.8’’ TFT LCD graphic display (240x320 pixel, 65536 colors)
- 32 LEDs
- Removable Mechanical key (if "Key ID 0-1" is not present)
Actuators
- Potentiometer
- Rotary switch
- Toggle switch
- Pull-to-operate toggle switch
- Side button
| Power supply | 7.4 VDC (Li-Ion Battery) 7.2 VDC (NiMH Battery) |
|---|---|
|
Frequency band
|
870/915 MHz FHSS
|
|
Hamming distance
|
≥ 15
|
|
Typical working range
|
100 m |
| Average usage time with fully charged battery (continuous use at 20°C) without display | 18.5 h (Li-Ion Battery) 11 h (NiMH Battery) |
| Average usage time with fully charged battery (continuous use at 20°C) with display | with 2.8” Display: 9 h (Li-Ion Battery) |
|
Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061)
|
up to PL e, SIL 3
|
| Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061) | up to PL d, cat. 3 / SIL 2 |
|
Protection degree
|
IP65 (NEMA 4)
|
| Operating and storage temperature | operating: (-25 °C) ÷ (+55 °C) storage: (-40 °C) ÷ (+85 °C) |
|
Dimensions
|
260 x 177 x 161 mm |
| Weight | 1,8 kg |
