DJM

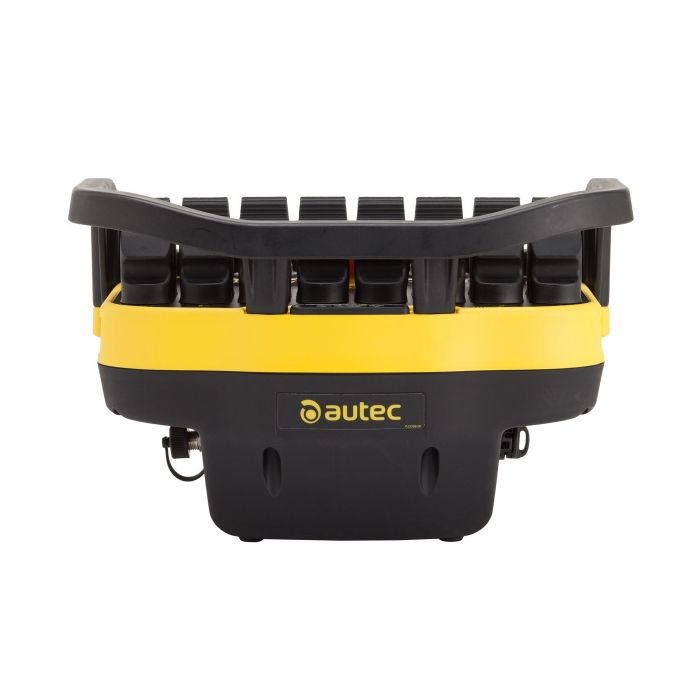

The DJM ransmitter with up to eight joysticks and several additional actuators provides a large number of commands and functions in countless customised solutions. The result: a remote control station capable of handling a wide range of machinery, including complex applications and special machines such as drilling and tunnelling machines, track mounted vehicles, etc.

Other properties: nylon reinforced casing, resistant to external influences, IP65 protection degree, comfortable design for easy control & handling.

Accessories

Shoulder harness
Waist Belt

Options

2.7’’ LCD transflective display
4.3’’ color display
32-LED matrix
LEDs on panel
Cable Control
Tilt or impact sensor
IR Sensor
External buzzer
3-axis Joystick
ID internal tx memory
Marine Environment Protection

Actuators

Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button

Skip to the end of the images gallery

DJM transmitter, DJM transmitting unit, AUTEC DJM, DJM zender, DJM zenderunit

Skip to the beginning of the images gallery

Details

Power supply	7.4 VDC (Li-Ion Battery) 7.2 VDC (NiMH Battery)
Frequency band	863-870 MHz (128 channels) / 915-928 MHz (260 channels)
Hamming distance	≥ 15
Typical working range	100 m
Average usage time with fully charged battery (continuous use at 20°C) without display	18.5 h (Li-Ion Battery) 11 h (NiMH Battery)
Average usage time with fully charged battery (continuous use at 20°C) with display	with 2.7” Display: 15h (LPM02 Battery), 9h (MBM06MH Battery) with 4.3” Display: 8h (LPM04 Battery)
Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061)	up to PL e, cat. 4 / SIL 3
Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061)	up to PL d, cat. 3 / SIL 2
Protection degree	IP65 (NEMA 4)
Operating and storage temperature	operating: (-25 °C) ÷ (+55 °C) storage: (-40 °C) ÷ (+85 °C)
Dimensions	310 x 210 x 190 mm
Weight	2,5 kg
