Type B

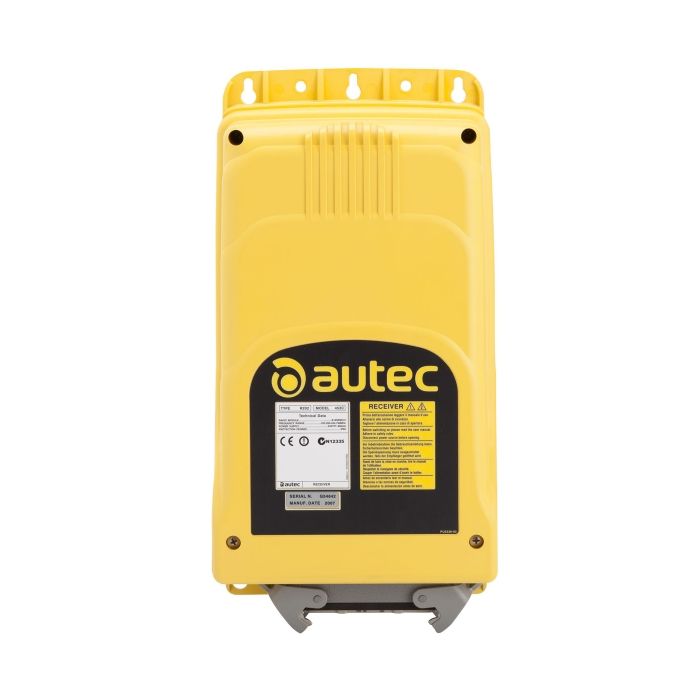

Receiver unit suitable for 24/48/55/110/230 Vac +/- 20% OR 12/24Vdc +/- 25% power supplies. Both designs have a maximum of 30 relay outputs. The receiver is equipped as standard with an internal antenna. An external antenna is available as an option. The receiver can be fitted with a 16, 24, 32 or 40-pole connector.

Applications

Suction and and cleaning vehicles Automatic warehouse Concrete pumps Concrete vibrators Forestry and Agriculture vehicles Forestry haulage systems Crushers / Screeners Port cranes Provision cranes Cutting and pressing machines Rock-Breaker booms Ladders Magnets / underhook attachments Mixers Mobile Boat haulers Mobile Boat trolleys Overhead cranes Sewer / Cleaning vehicles Robotics Tow vehicles Grinders for agriculture Railway automation Trailers Machine tools Hoists / winches Side loaders

Skip to the end of the images gallery

Autec TYPE B, TYPE B radio remote control, TYPE B receiver, TYPE B ontvanger, TYPE B ontvangerunit

Skip to the beginning of the images gallery

Details

Power supply	24/48/55/110/230 Vac +/- 20% 12/24 Vdc +/- 25%
Antenna	integrated or dedicated
Protection degree	IP 65
Operating and storage temperature	operating: (-20 °C) ÷ (+70 °C) / (-4 °F) ÷ (+158 °F) storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F)
Dimensions	202x381x91 mm 7.95x15x3.58 in
Weight	3,5 kg 7.72 lb
