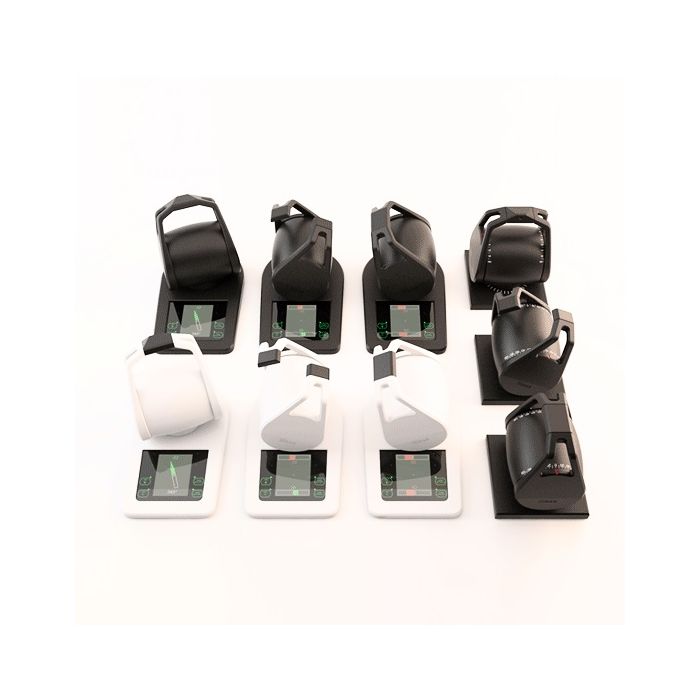

The Lilaas L01 is a multifunction lever for azimuth, thruster and propulsion control. The control lever can be moved +/- 60° vertically and continuously 360° horizontally. The L01 is compact and rugged. It combines multiple functions simply and safely.

Built in electronic shaft system

  • The Lilaas L01 lever with built-in electronic shaft system offers integrated e-motors and an in-house developed electronics shaft system. This elimitates the need for big expensive external boxes.
  • The lever comes with software solutions and a built in TFT LCD digital display for lever position and feedback information from the ship’s systems. It also includes various parameter settings: FWD or AFT, CAN, alarm, display, networks, feedback etc.
  • Available capacitive touch switches on the display for menu operations and/or for custom functionality.
  • The lever has new cost-effective force feedback solution that does not use electric motors

Options electronics Lilaas L01

  • Display graphics
  • Digital isolated input
  • Force feedback
  • E-motor
  • Integrated electrical shaft system
  • Color and logo of choice

Mechanical Version

The mechanical version of the L01 has redundant magnetics sensors on all axes. It is available as azimuth, thruster and propulsion control lever with laser engraved and LED illuminated scale.

  • Built-in switches
  • Mechanical detents
  • Limited deflection
  • Customized scale
  • E-motor
  • Color and logo of choice
foto Jan WIllem Oechies
Jan Willem Oechies
Inside Sales Engineer
foto Tim Kuyt
Tim Kuyt
Account Manager
Power supply 24V DC
5V DC (sensors) mechanical version
Panel plate and housing Coated aluminium
Handle Aluminium and moulded Arnitel
Handle movement azimuth +/- 60º and 360º
Handle movement thrust/propulsion +/- 60º
Scale 2,4" TC LCD display (with electronics)
Enclosure IP66
Standard Sensor Magnetic 5V DC
Isolated analog output and backup output
Type approval L01 EN/IEC 60945, ABS, BV, DNV GL, KR, LR, NK, RINA, PRS, RS, CRS

Capacitive touch switches for custom functionality and menu operations available on all electronic versions.
