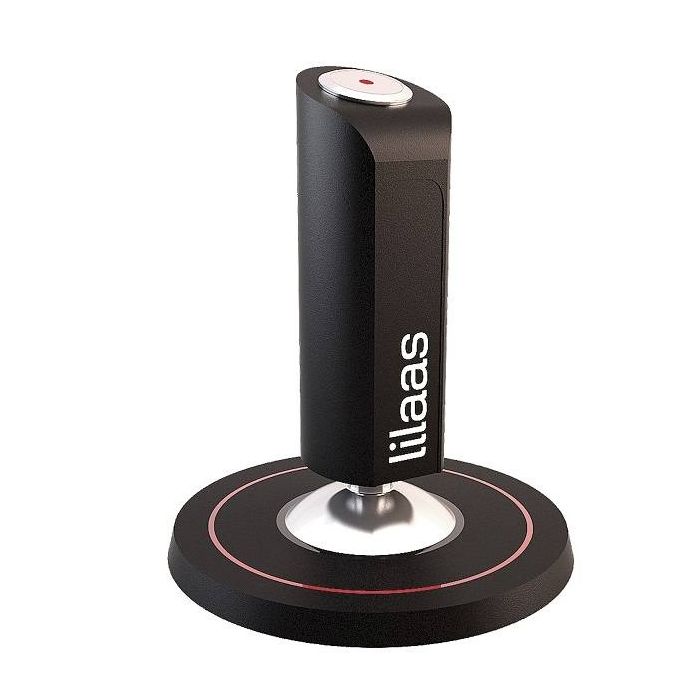

The Lilaas L04 is a modern and compact multifunctional joystick. It comes with 1, 2 or 3 axes. The handle can be turned 48º in x and y direction and 120º in z direction (90º with spring return). The joystick is designed for electronic control and can be used for maritime and on-shore applications. The L04 comes with a ball-shaped transition between handle and panel plate. The device is compact and rugged. It is able to control several functions simply and safely.
Options Lilaas L04 joystick
- Pushbutton with or without light
- Different shaft types
- Spring-loaded return to neutral
- Built-in micro switches
- Light
- Color and logo of choice
- 4 – 20 mA signal from a signal amplifier
- CANbus, Profibus and Profinet signals emitted by Lilaas interface unit
- other outputs: in consultation with Elma Components
- Other options on request
| Handle | Dull suface |
|---|---|
| Materials | Stainless steel, brass, aluminium, POM |
| Sensor | Magnetic with 5V DC reference Voltage, 0-5V DC out standard termination 16 pins contact with plug |
| Encloser | IP56 |
| Type approval | EN/IEC 60945, ABS, BV, DNV, GL, KR, LR, NK, RINA, PRS, RS, CRS |
