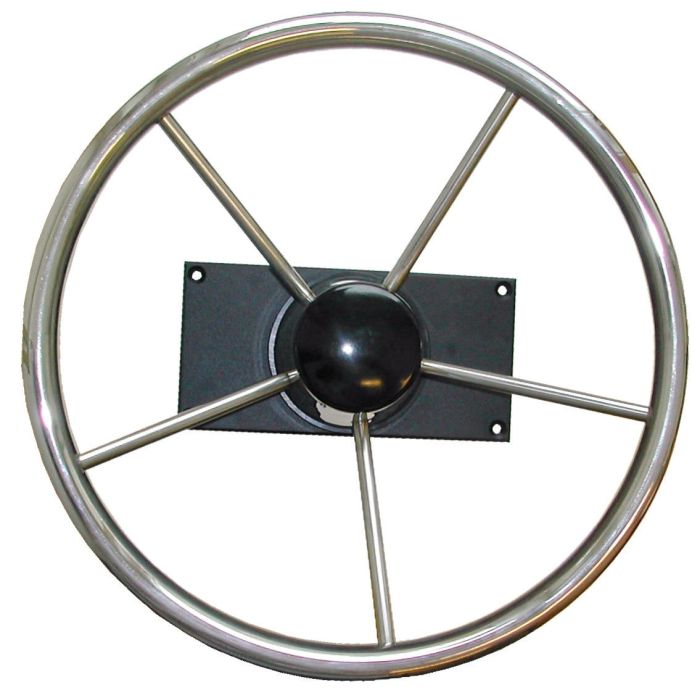

LF150 is a rudder control unit designed for electronic control. The full size standard wheel can be turned maximum 280º. The LF150 wheel unit for rudder control includes potentiometer and visible panel plate.
Technical description
• Wheel: Specified by customer
• Materials: Stainless steel, brass, aluminium, POM
• Standard potentiometer: 5 kΩ
Options Lilaas LF150
• Termination
• Spring-loaded return to neutral position
• Built-in switches
• Light
• Alternative potentiometers
• Custom design: wheel, panel plate, scale foil
Materials / Finish | Steel A2, AI, POM, alodine, powder coating |
---|---|
Weight | Approx. 3 kg |
Movement, LF150-01-10 / LF150-01-30 | ±60˚ / ±155˚ |
Detent | In zero |
Panel plate | 96 x 144 mm |
Wheel diameter / grip | 350 mm / stell or padded |
Standard potentiometer | Single 5 kΩ linear |
Termination | 16 pins contact with plug |
