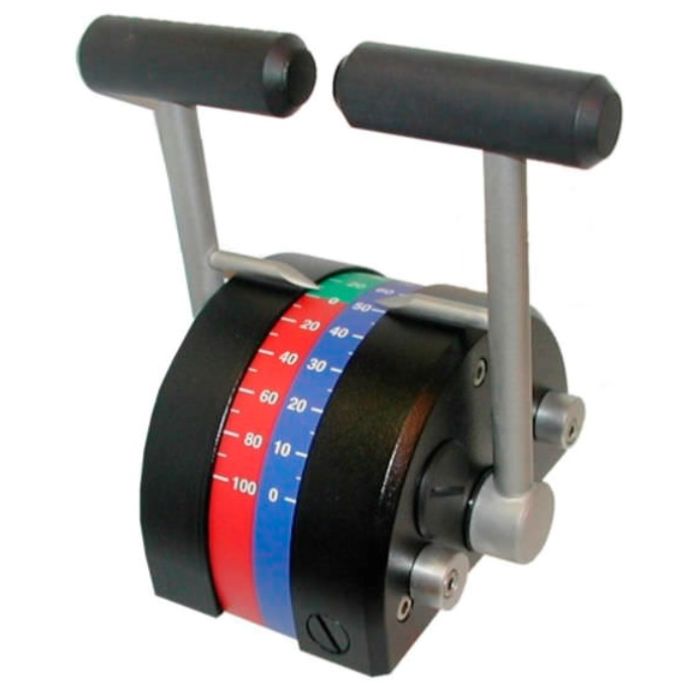

The Lilaas LF180 is a control lever for propulsion machinery, one or two engines. The unit is designed for electronic control and is equipped with potentiometers. Lilaas' largest lever for propulsion control.
Most important technical specifications
- Side covers: black coated aluminium
- Shaft: flat finished stainless steel
- Handle: flat finished POM (plastic material)
- Scale: self adhesive on acryl bow
- Scale light: 24 volts
- Standard potentiometer: 5 kΩ
- Potentiometer operation: via tooth belt
Options Lilaas LF180 propulsion lever
- Termination
- Built-in switches
- Spring loaded return to neutral position
- Panel plate 144x220 mm, enclosure according to IP66
- 4 – 20 mA signal from signal amplifier
- CANbus, Profibus and Profinet signals emitted by a special Lilaas interface unit
- Other outputs: in consultation with Elma Components
| Side covers | Black coated aluminium |
|---|---|
| Shaft | Flat finished stainless steel |
| Handle | Flat finished POM (plastic material) |
| Scale | Self adhesive on acrylic bow |
| Scale light | 24 volts |
| Standard potentiometer | 5 kΩ |
| Potentiometer operation | Tooth belt |
