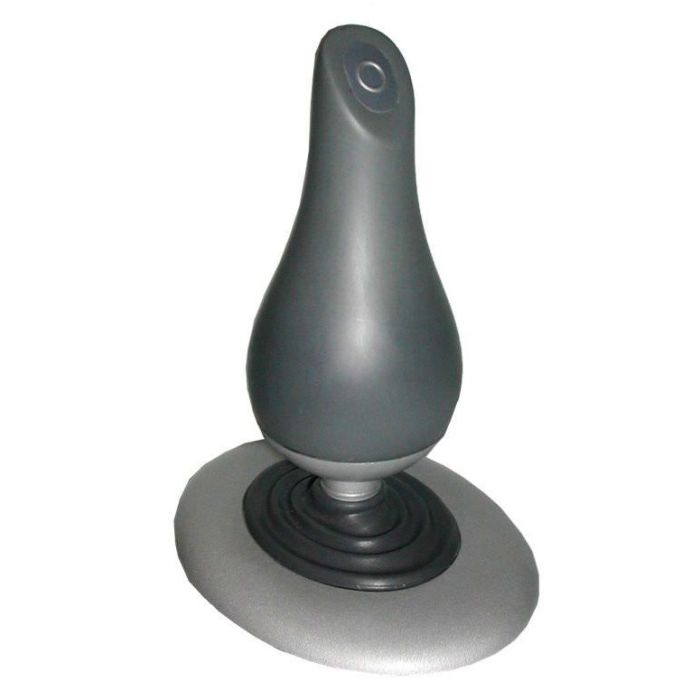

The Lilaas LF50 is a multifunction-type joystick with 1, 2 or 3 axes. The handle can be turned +/- 80° in z-direction. All axes can be used simultaneously. It is designed for electronic control and therefor equipped with potentiometers and micro switch contacts. The joystick can be used for maritime as well as for on-shore applications. The LF50 can be delivered with or without visible fixing plate. The Lilaas LF50 comes with the traditional bellows.
Options Lilaas LF50
- Termination
- Built-in micro switches
- Alternative potentiometers
- Different colors
- Custom design (handle, panel plate)
- 4 – 20 mA signal from a signal amplifier
- CANbus, Profibus and Profinet signals emitted by Lilaas interface unit
- Other outputs: in consultation with Elma Components
Handle | Flat finished POM (plastic material) |
---|---|
Materials | Stainless steel, brass, aluminium, POM |
Standard potentiometer | 5 kΩ |
